What keeps me from fishing.. Warbirds

Discussion in '360 Degrees Lounge' started by Bazztex, May 20, 2008.

  1. bighead

    bighead Senior Member

    206
    0
    Looking good Bazz. Can't wait to see it completed.


  2. Bret

    Bret Senior Member

    1,699
    14
    Man, thats gonna be fine when you are done!!!

  3. Snagged

    Snagged Senior Member

    1,374
    5
    Beautiful work! Do you have any "BEFORE" pictures?

  4. LEXPRO

    LEXPRO Senior Member

    424
    2

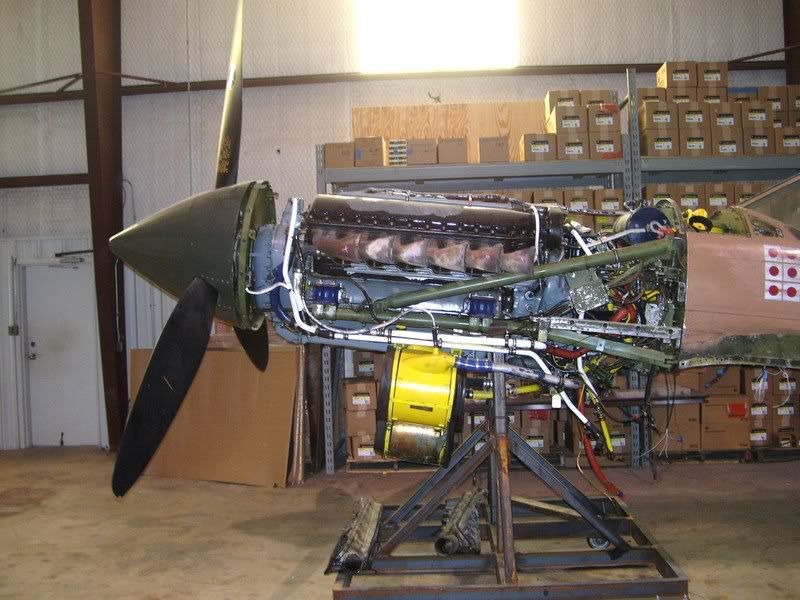

    now thats an engine...

  5. Bazztex

    Bazztex Senior Member

    221
    2
    Last night I worked on the Tail Wheel Lock release handle on this bird. after 60 years the # 3 rivets holding the handle on the shaft gave up.. LoL

    Corsair F4U-1D..
    [​IMG]

    [​IMG]

  6. Bazztex

    Bazztex Senior Member

    221
    2
    Jerry.. Before

    This Lower trailing edge wing skin and flap bell-crank support hat section had battle damage and fatigue cracking.

    [​IMG]

    After we re-fabricated them.. here's both new parts being drilled for assembly.

    [​IMG]


    [​IMG]

    Bazz

  7. Bazztex

    Bazztex Senior Member

    221
    2

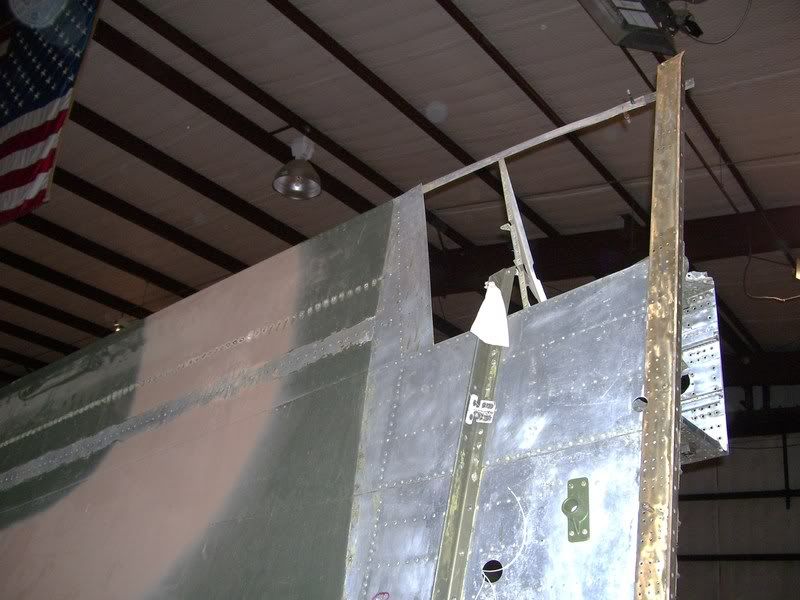

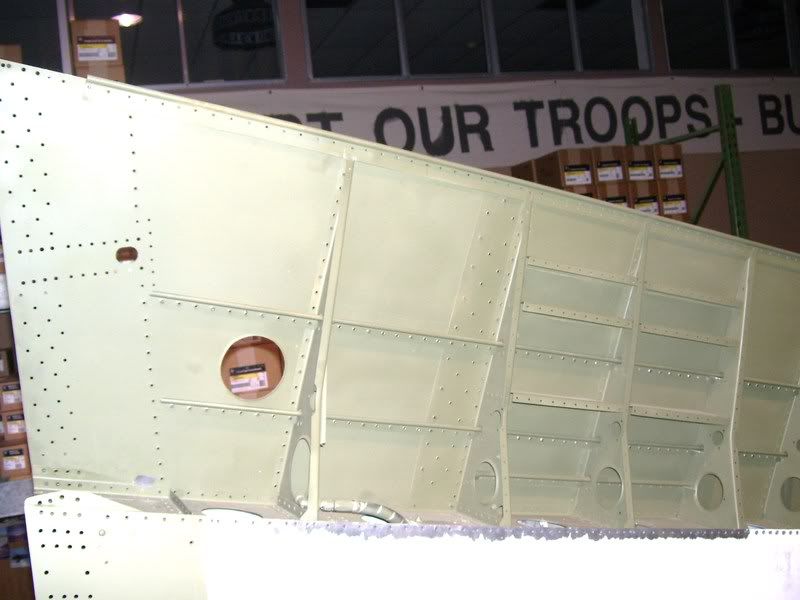

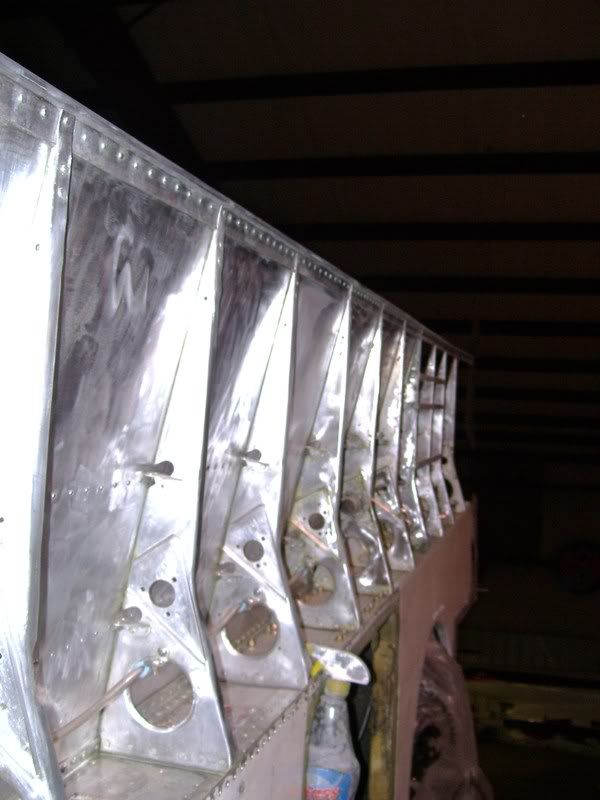

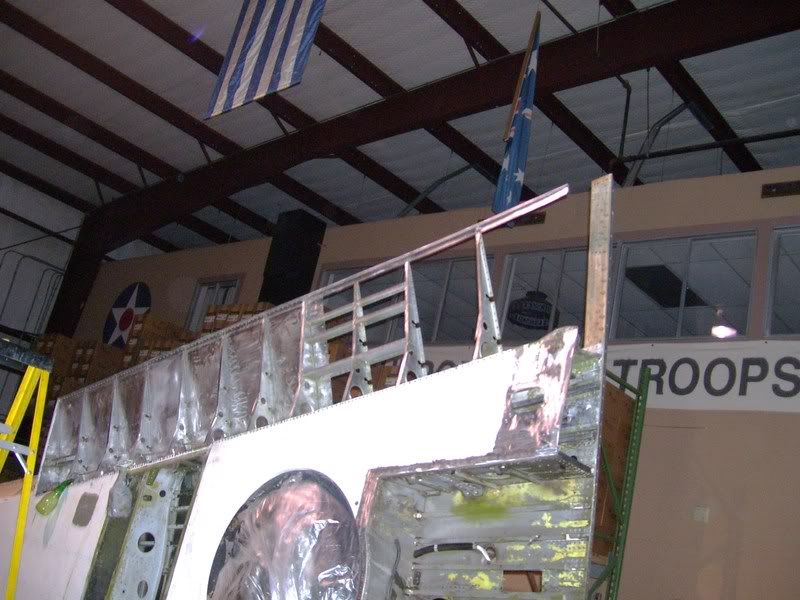

    Before the Wing T/E skin had deep dings and corrosion.. the damaged sections were cut out / removed & re-fabricated.

    Right Wing

    [​IMG]
    [​IMG]
    [​IMG]
    http://i9.photobucket.com/albums/a68/Bazztex/P-40
    http://i9.photobucket.com/albums/a68/Bazztex/P-40CorrosionControllUpdateand550In.jpg

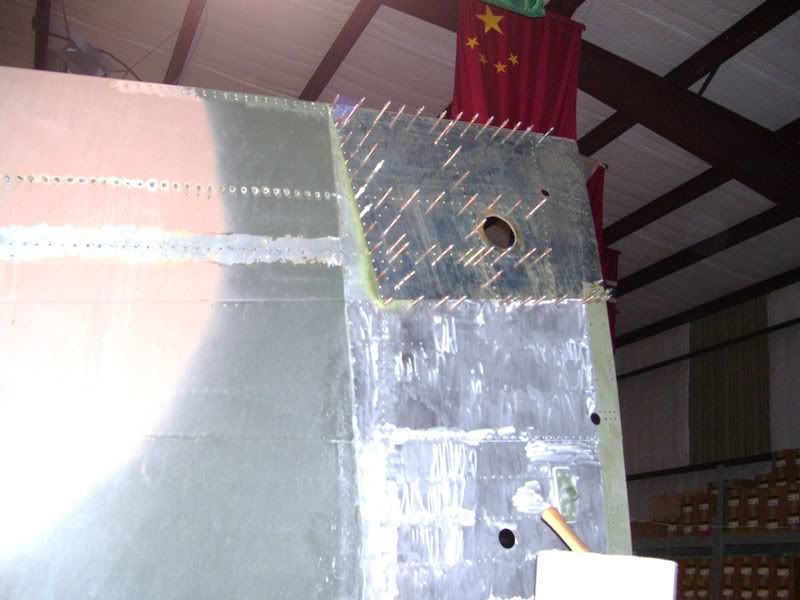

    Left Wing T/E Repairs...
    [IMG]http://i9.photobucket.com/albums/a68/Bazztex/PlanesImworking092.jpg
    [IMG]http://i9.photobucket.com/albums/a68/Bazztex/PlanesImworking094.jpg
    [​IMG]

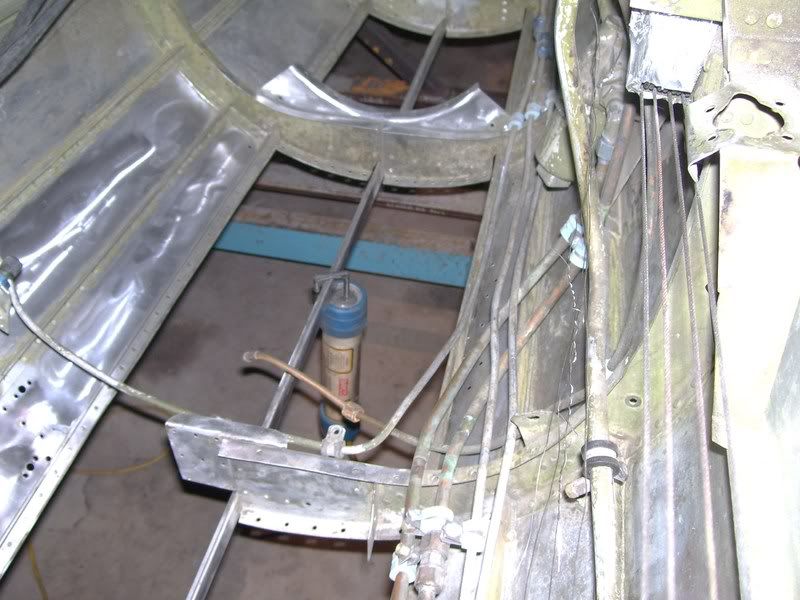

    Fuselage Belly Skins... Old corroded and Fab'ed new

    [​IMG]
    [​IMG]

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  8. Snagged

    Snagged Senior Member

    1,374
    5
    Beautiful and difficult work Charlie!

  9. lite-liner

    lite-liner troll enforcement Staff Member

    5,986
    1,860
    Geez, Charlie! all I can say is WOW!
    I need to come by & see that one. amazing work & thanks for the pics!
    You know I've been waiting for these. awesome
    -B

  10. Deep_Sea_Gull

    Deep_Sea_Gull Lifetime Supporting Members

    740
    54
    Swing with the wing!

    Nice work there Charlie. You have MADD metal working skills.

    There ought to be charters for the whole boat from works like that.

  11. STx Fisherman

    STx Fisherman Senior Member

    813
    3
    Amazing work, Charlie. Thanks for sharing the pics!

  12. outofcontrol

    outofcontrol Junior member

    7
    0
    Wow I wish I had a project like that; looks like a lot of clecos and rivet bucking. The corsair is totally awesome, the sound of a radial it doesn't get much better. How does she fly? I have read that you had to be respectful to them due to the reverse gull wing and the huge prop.

  13. Bazztex

    Bazztex Senior Member

    221
    2
    Thanks guys..

    Preserving aviation history makes work less of a grind.. but it's still a lot of work. ;)

    OutofControl.. The CAF makes all of their Air Show Pilots fly a T-6 Trainer for a long period before they get to fly the Corsair or P-40.. I personally only Bend Aviation Tin so I can't speak of the flight characteristics??


    Charlie

  14. Bazztex

    Bazztex Senior Member

    221
    2
    The Texas Commemerative Air Force / CAF WWII T-6 Trainer showed up at the G-Ville hangar Wednesday so I got you some shots of her.

    [​IMG]

    [​IMG]

    [​IMG]

    Bazz
