penn squidder 140/145/146 rebuild

Discussion in 'Reel Repair' started by alantani, Dec 16, 2007.

  1. alantani

    alantani Senior Member

    453
    4
    here's another old standard from penn. the squidders continue to remain popular among long distance surf casters. they also performs well for many inshore light tackle applications. a single screw also allows you to remove the side plate and easily clean the reel or change spools.

    [​IMG]

    first, go to pennparts.com for the schematics and parts lists. for this particular rebuild post, i will be working off the 145 schematic.

    140L - PENN 140L Parts List

    140L-LH - PENN 140L-LH Parts List

    145 - PENN 145 Parts List

    146 - PENN 146L Parts List

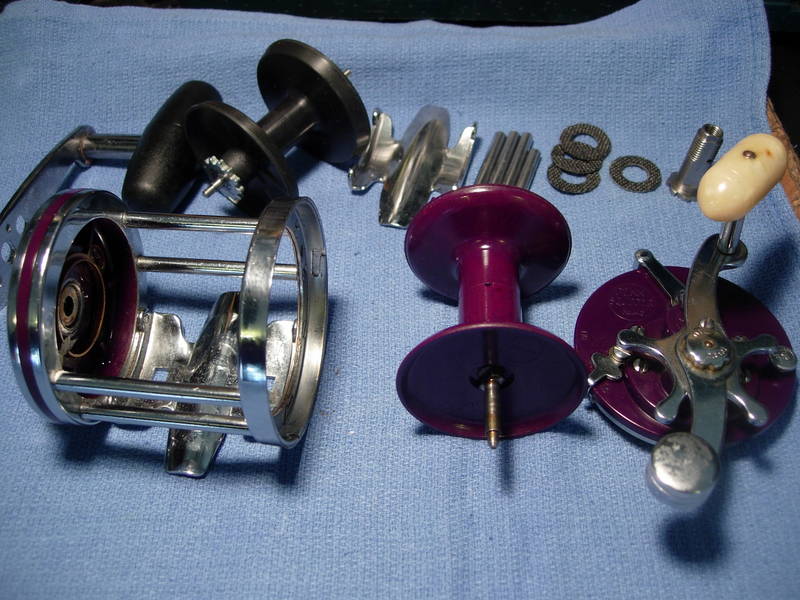

    what we're going to do with this reel is to hotrod it a little, with a jigmaster power handle (#24-56), a narrow frame and spool conversion kit KIT140-146CK Conversion Kit 140 to 146 - Limit One, a new set of three #6-60 drag washers inside the main gear, a new #6-113 drag washer under the main gear, and a stainless steel gear sleeve that was made up custom for me. please note that this is not the same #98-60AT or #98-505AT stainless steel gear sleeve carried by pennparts.com. this was a limited run made by pete kolekar at my request. there are only a few left.

    [​IMG]

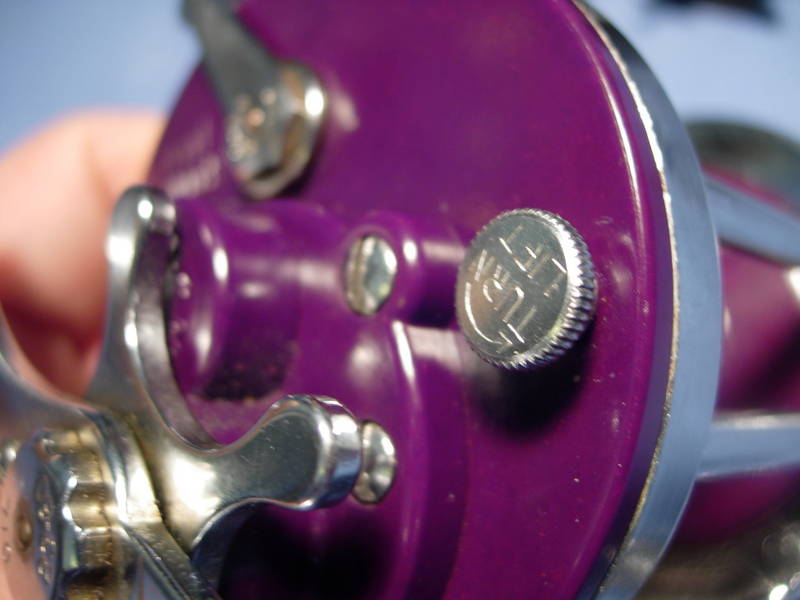

    one of the nice features of this reel and the jigmaster is the take apart thumb screw (key #40). turn the screw counterclockwise, lift this spring-loaded screw a little, then turn the entire left side plate counterclockwise and remove the right side plate assembly.

    [​IMG]

    we're now down to three pieces, the frame assembly, spool and right side plate assembly.

    [​IMG]

    we'll start by removing the left side plate screws (key #'s 32 and 39).

    [​IMG]

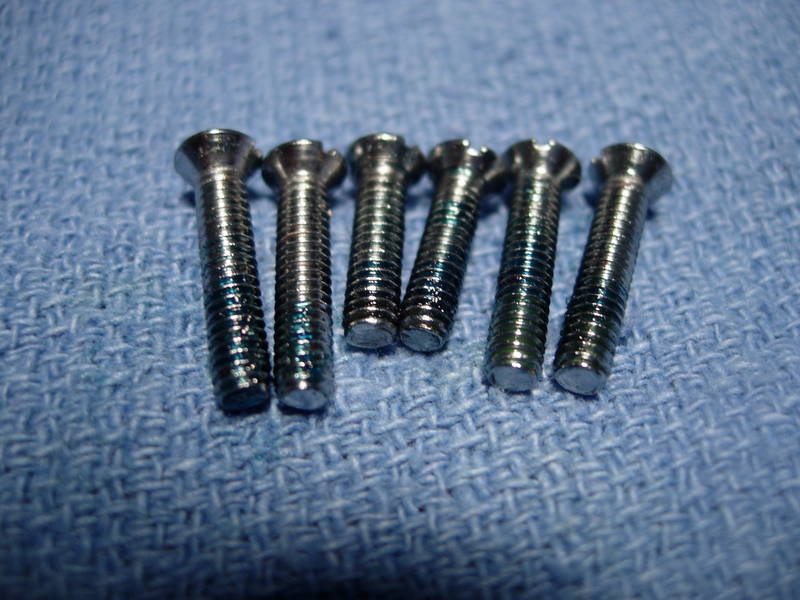

    note that the post screws (key #39) are longer than the stand screws (key #32).

    [​IMG]

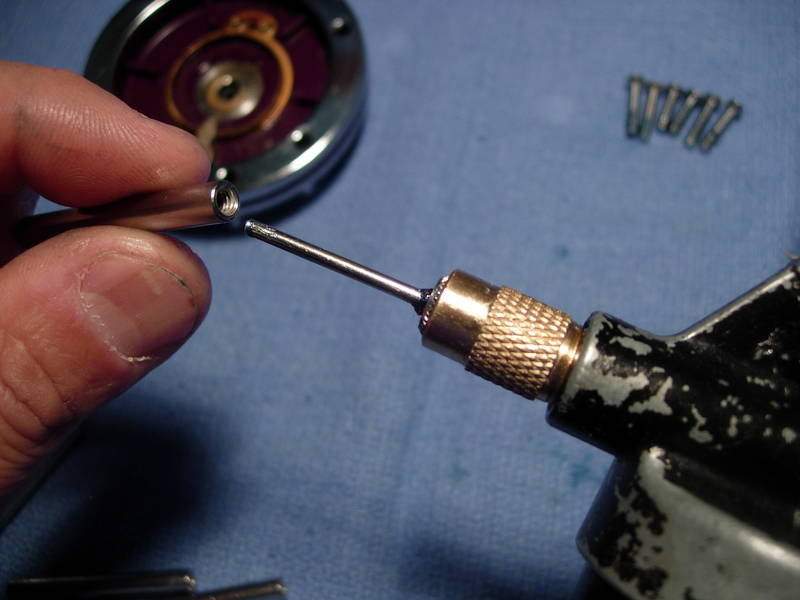

    grease the screw holes of the new frame posts (key #37) and new stand (key #30) and install them.

    [​IMG]

    remove the left side bearing (key #40).

    [​IMG]

    pull out the bearing shield (no key #).

    [​IMG]

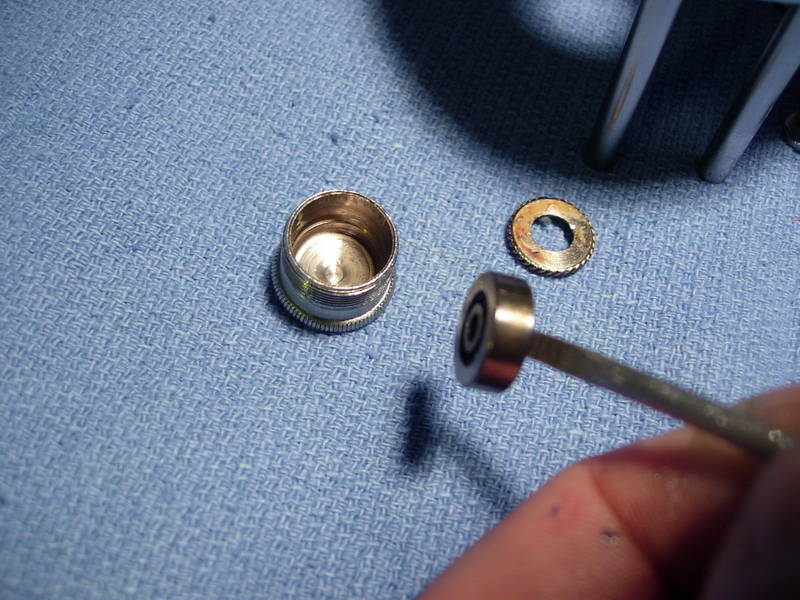

    the old bearing is toast.

    [​IMG]

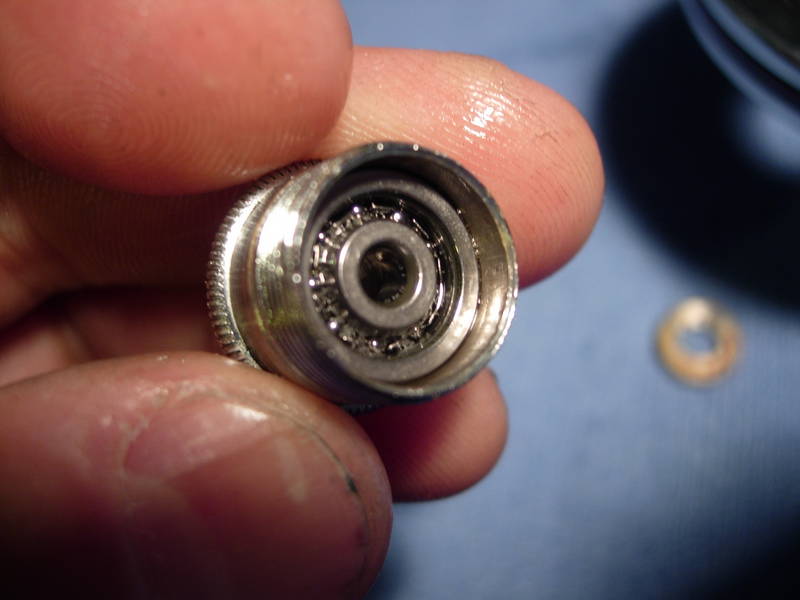

    a new bearing is a 0.125 x 0.5 x 0.172 in stainless steel. it's going in degreased, lubed with corrosion x and left open.

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_012.jpg

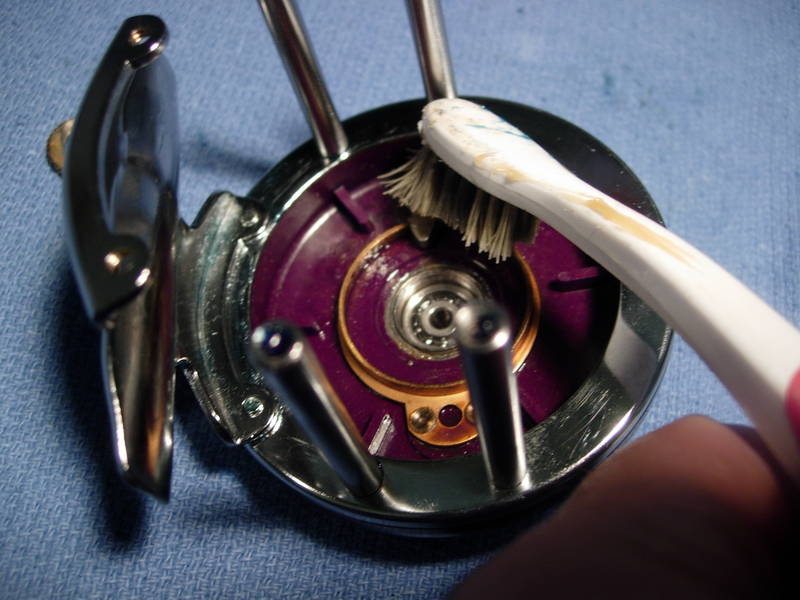

    grab that ratty old toothbrush and brush on a light coat of grease.

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_013.jpg

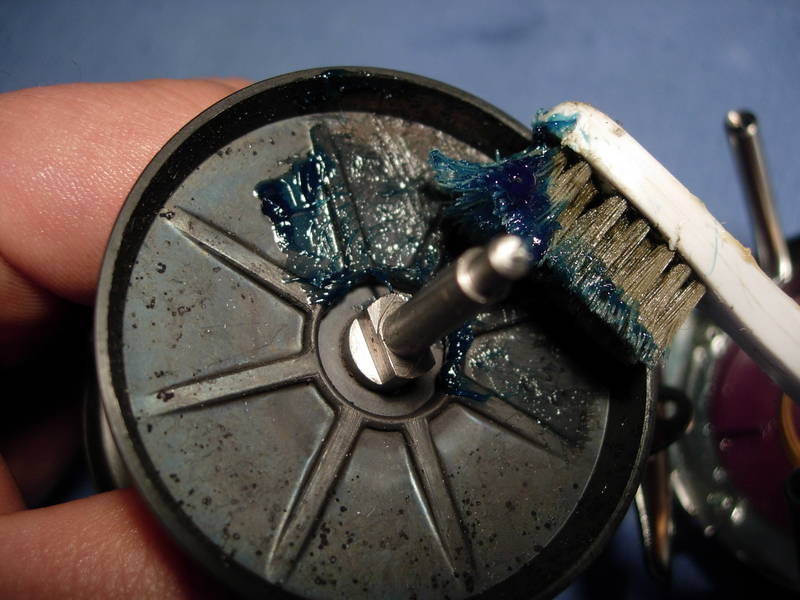

    a little on the spool (key #29L) as well.

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_014.jpg

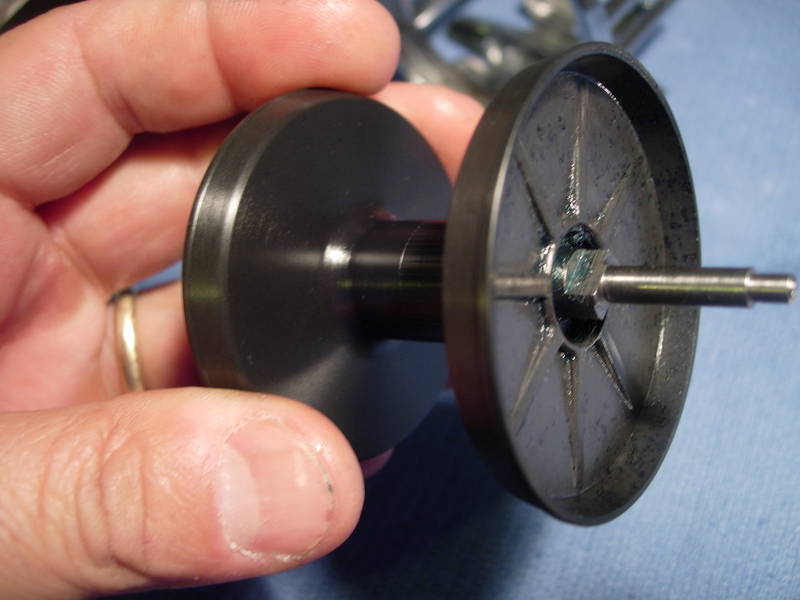

    there. much nicer!

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_015.jpg

    remove the right post (key #38) and stand (key #31) screws. note that they are also of different lengths.

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_016.jpg

    grease the screw holes and re-install the right side ring (key #2).

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_017.jpg

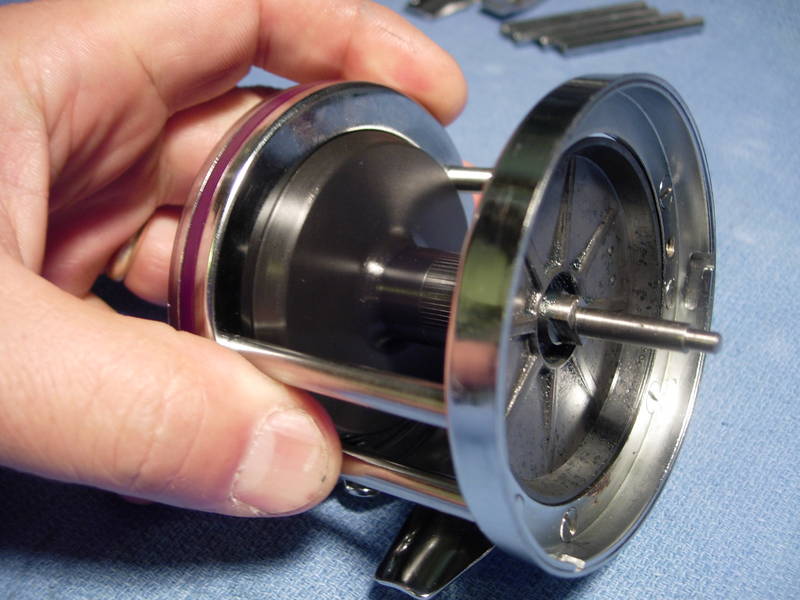

    throw the spool in and set them both aside.

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_018.jpg

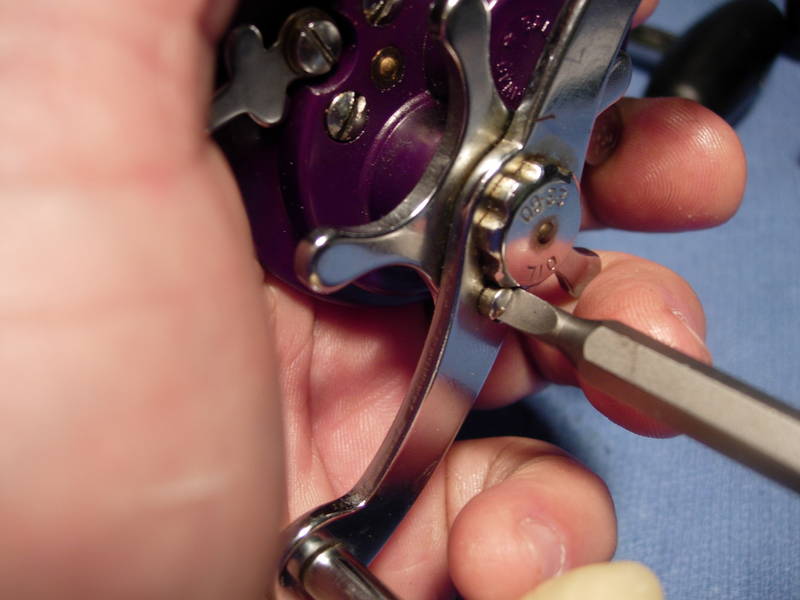

    now for the right side plate assembly. remove the handle lock screw (key #23a).

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_019.jpg

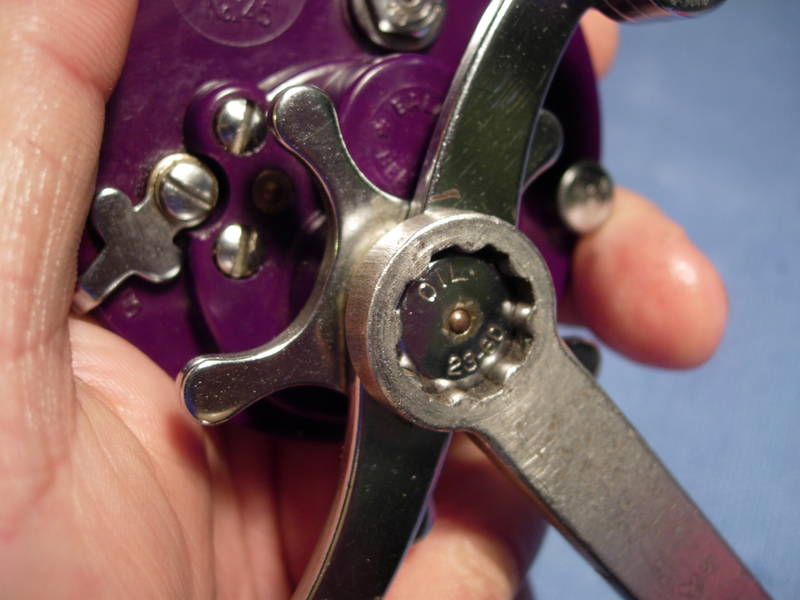

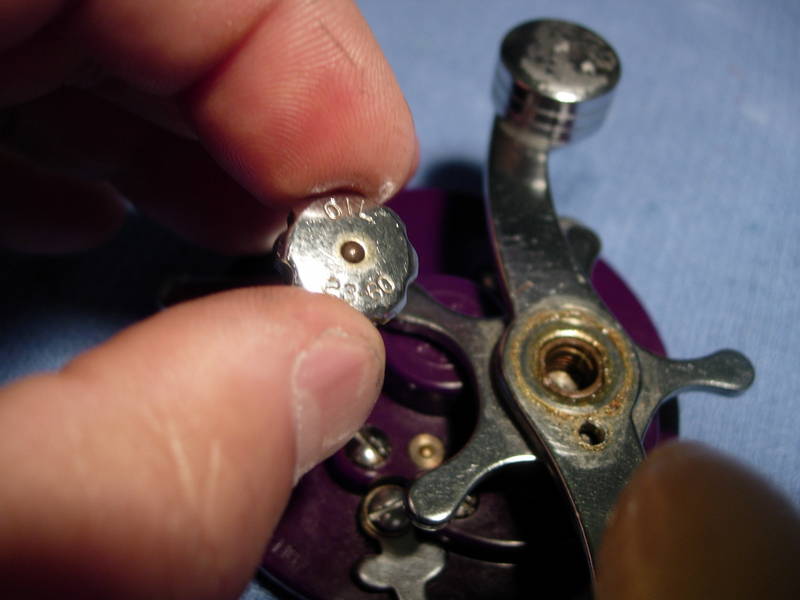

    remove the handle screw (key #23).

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_020.jpg

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_021.jpg

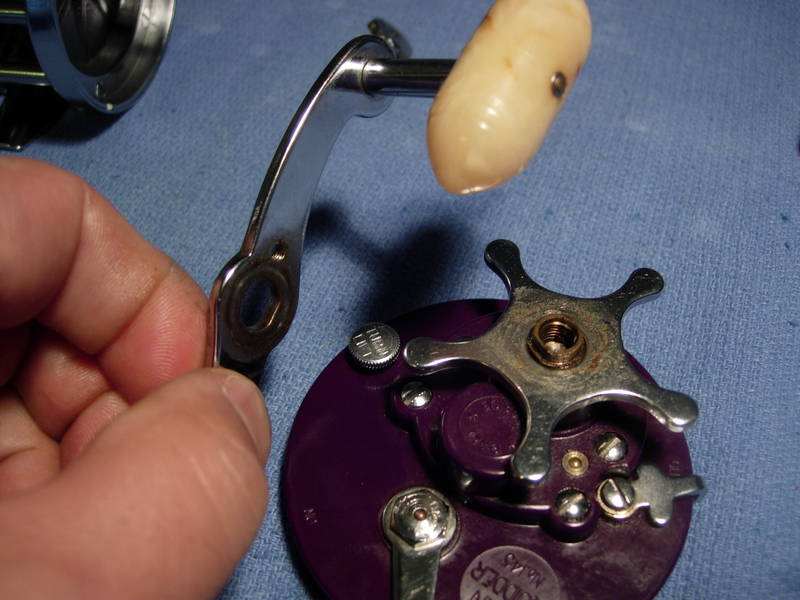

    remove the handle (key #24) and note the damage to the top of the soft brass gear sleeve (key #98).

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_022.jpg

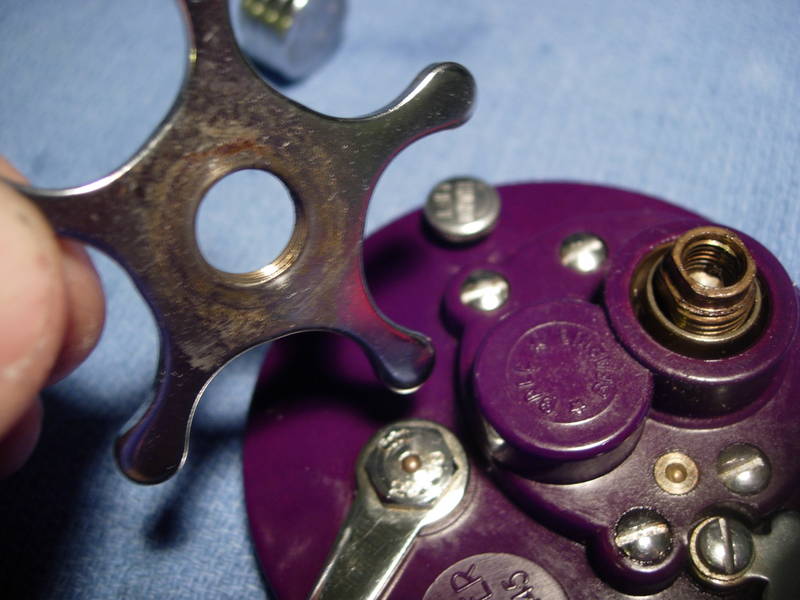

    remove the star (key #10).

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_023.jpg

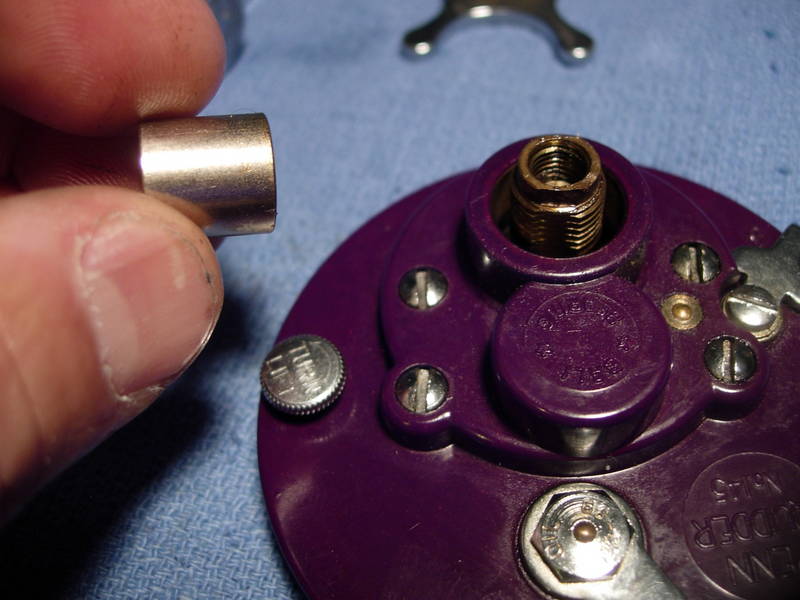

    remove the spacing sleeve (key #9).

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_024.jpg

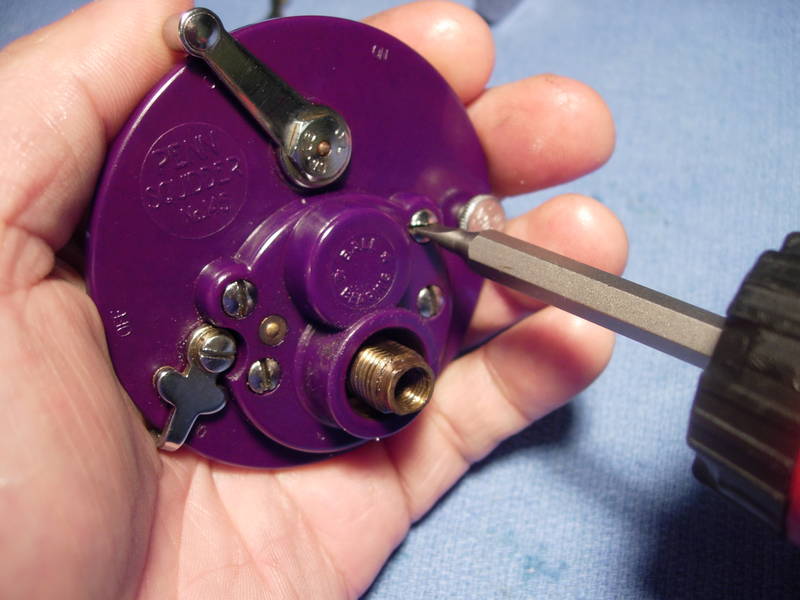

    back out the four bridge screws (key #'s 16 and 17).

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_025.jpg

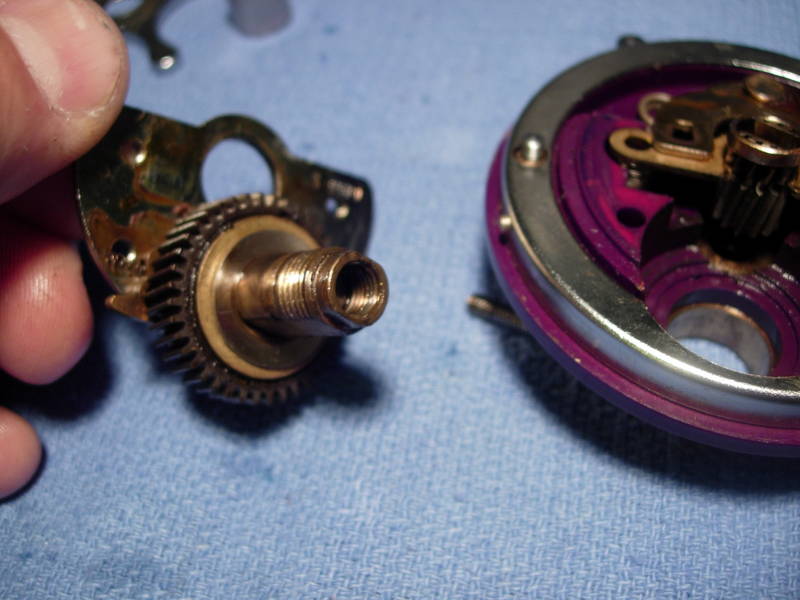

    the bridge assembly will drop straight out. note that the dog and dog spring came with it.

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_026.jpg

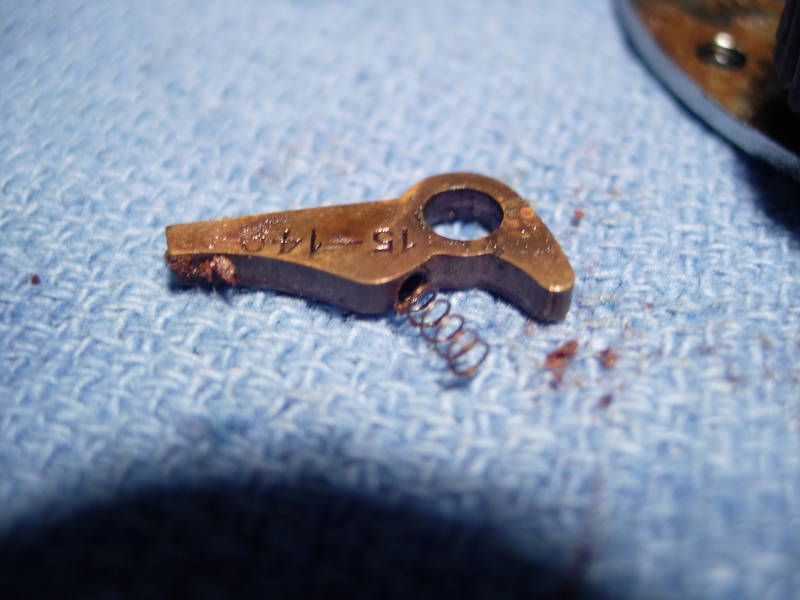

    this dog is a little different from the others. it has a hole drilled into it and the spring rests inside making the installion much easier.

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_027.jpg

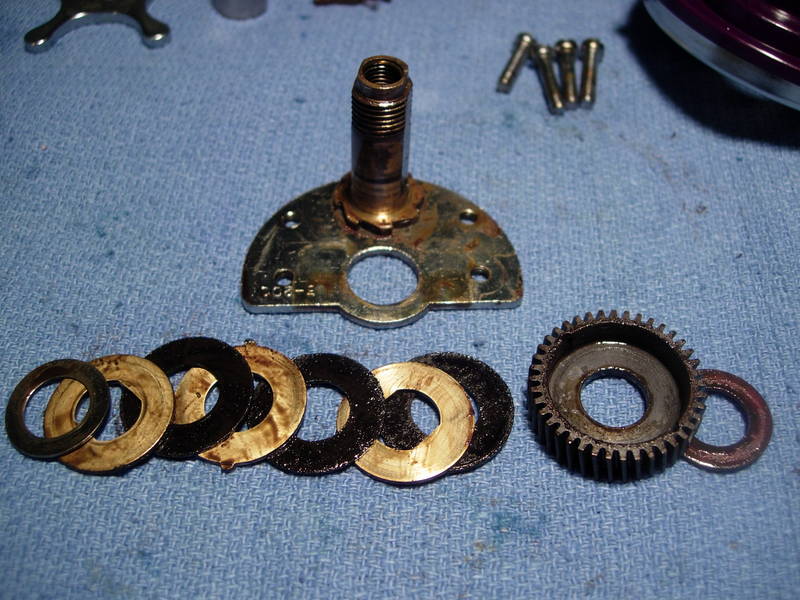

    here's the bridge (key #3) with the main gear (key #5), drag washers (key #'s 4, 6 and 7) and tension spring.

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_028.jpg

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_029.jpg

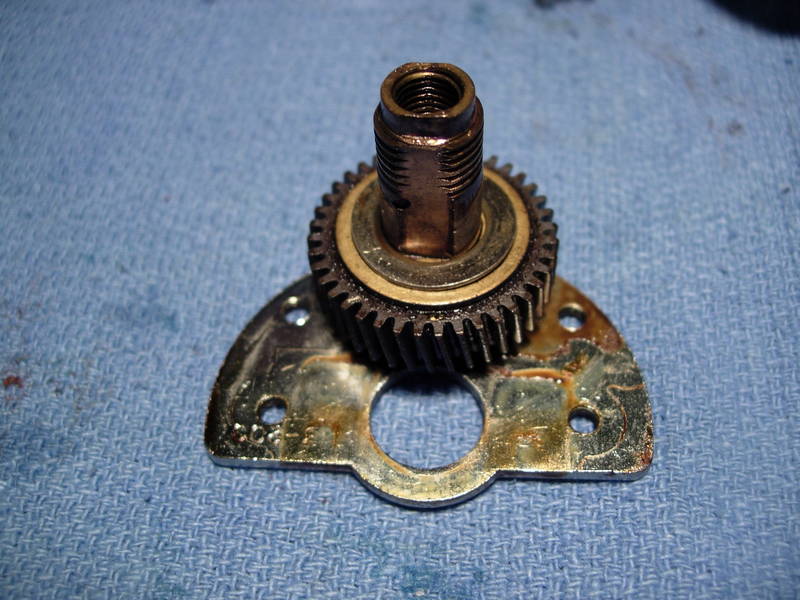

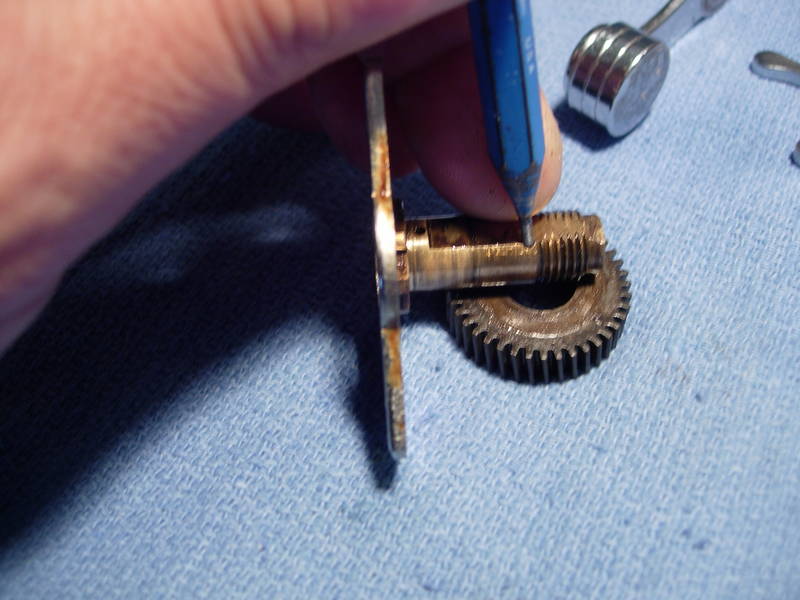

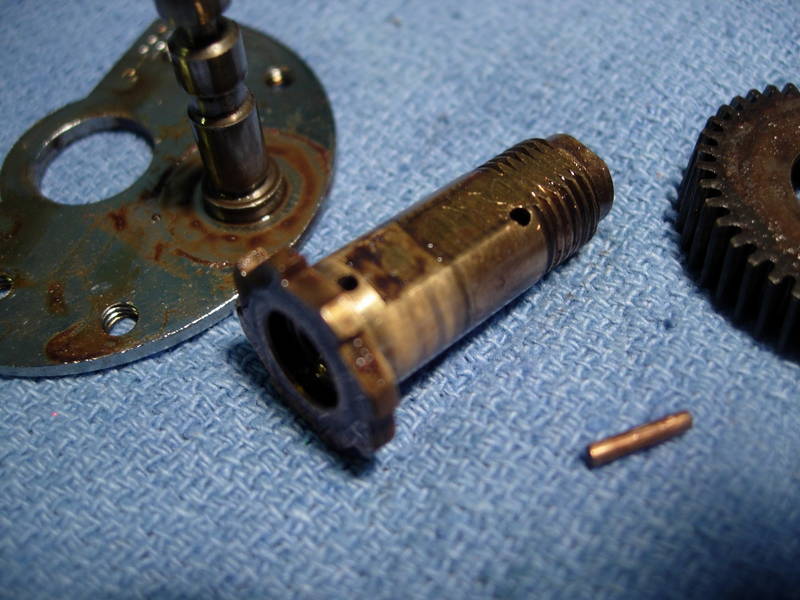

    to remove the brass gear sleeve (key #98), push (or punch) out the retaining pin.

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_030.jpg

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_031.jpg

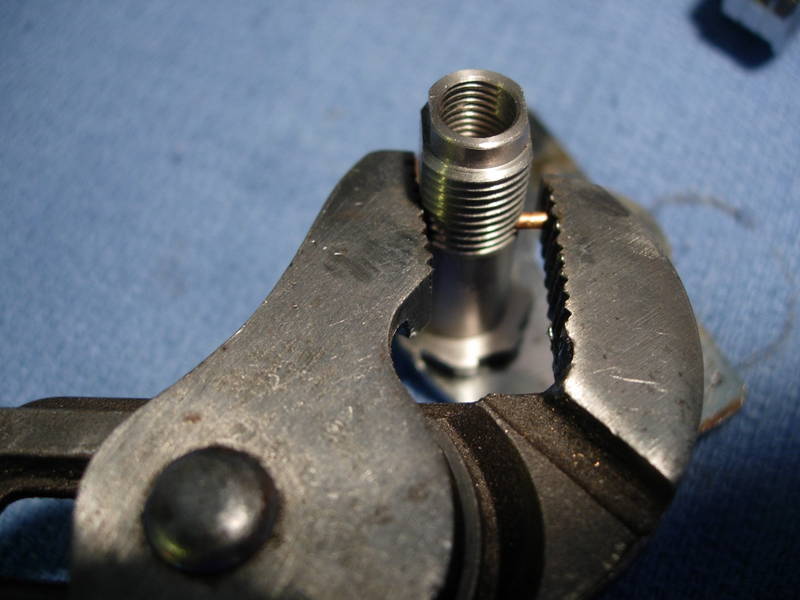

    install the new stainless steel gear sleeve and the retaining pin. sometimes the pin sticks out a little. just file it flat and the main gear should be able to slide over with no trouble.

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_032.jpg

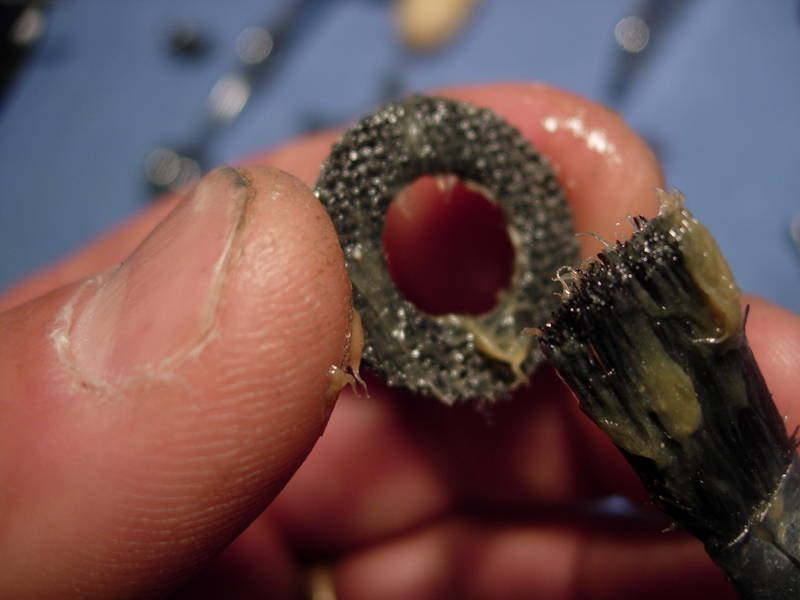

    the first washer that goes under the main gear is a #6-113. a generous coat of cal's drag grease works well here.

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_034.jpg

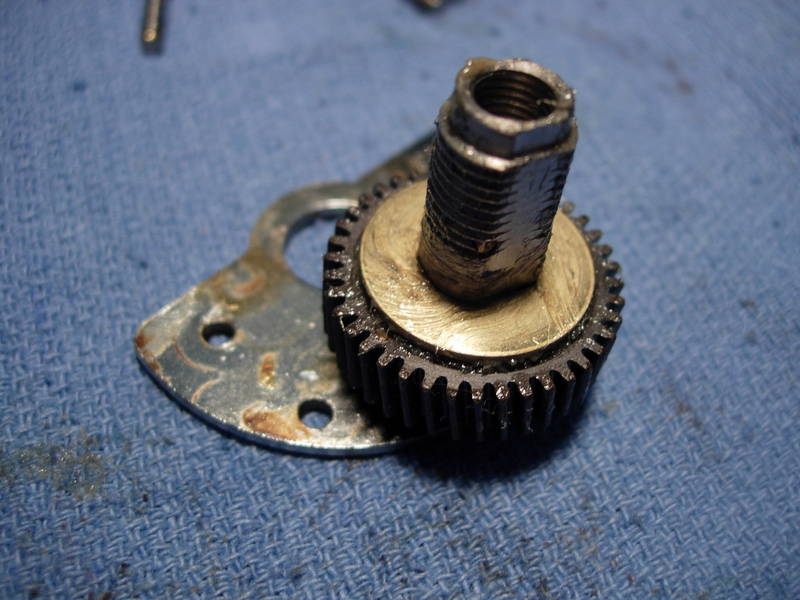

    rebuild the gear stack with a generous coat of drag grease on all of the drag washers. don't worry about the excess. it will simply squeeze out the sides. note that we will also be discarding the tension spring (key #8). the extra thickness of the #6-113 drag washer underneath the main gear means that there is no room for the tension spring.

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_035.jpg

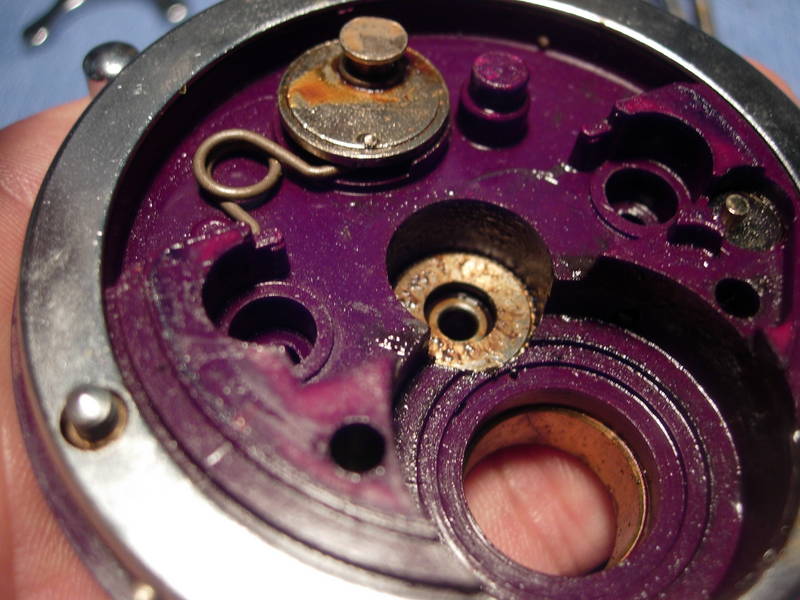

    now for the right side plate bearing.

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_036.jpg

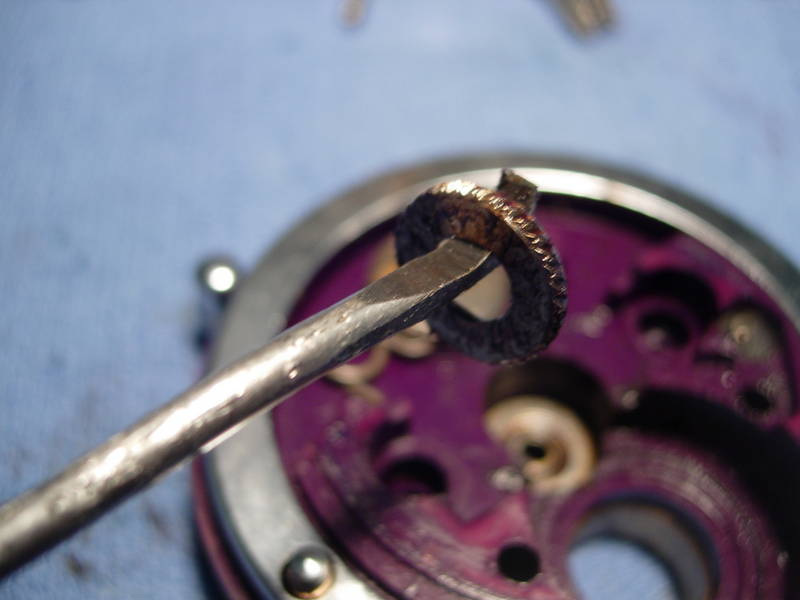

    our handy dandy bearing pulling tool will remove the bearing cover.

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_037.jpg

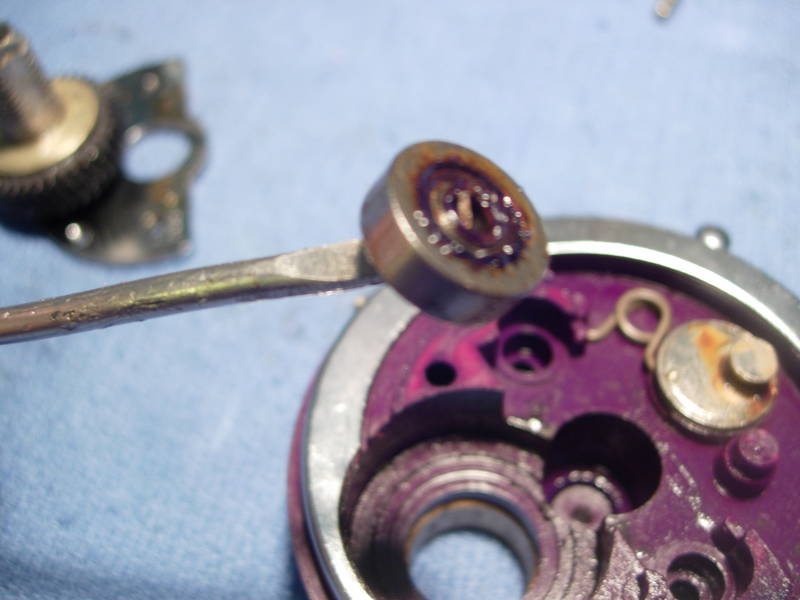

    it will also remove the bearing (key #26).

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_038.jpg

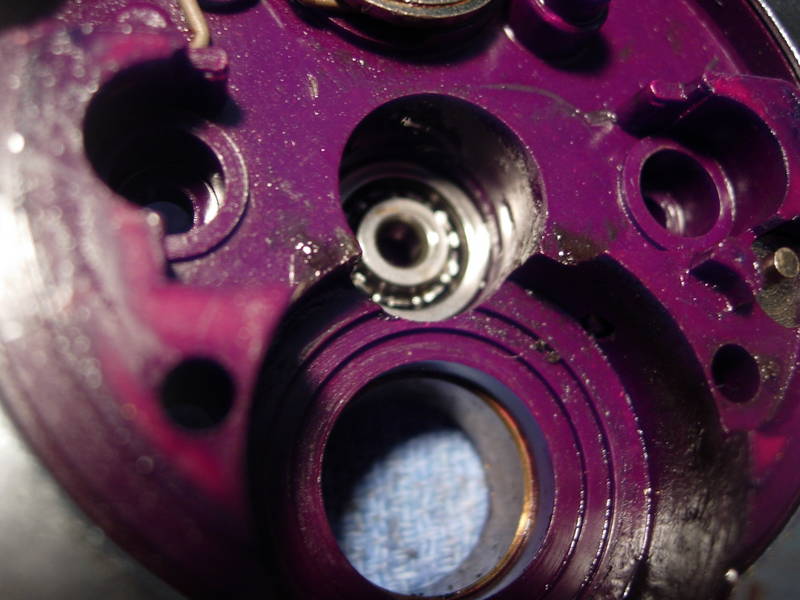

    this bearing was rusted as well. this new bearing is also a 0.125 x 0.5 x 0.172.

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_039.jpg

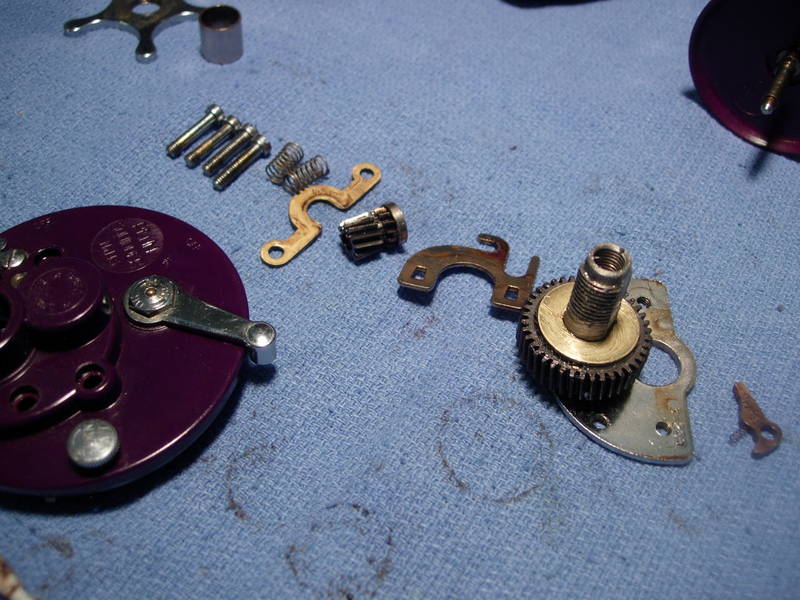

    let's line everything up.

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_040.jpg

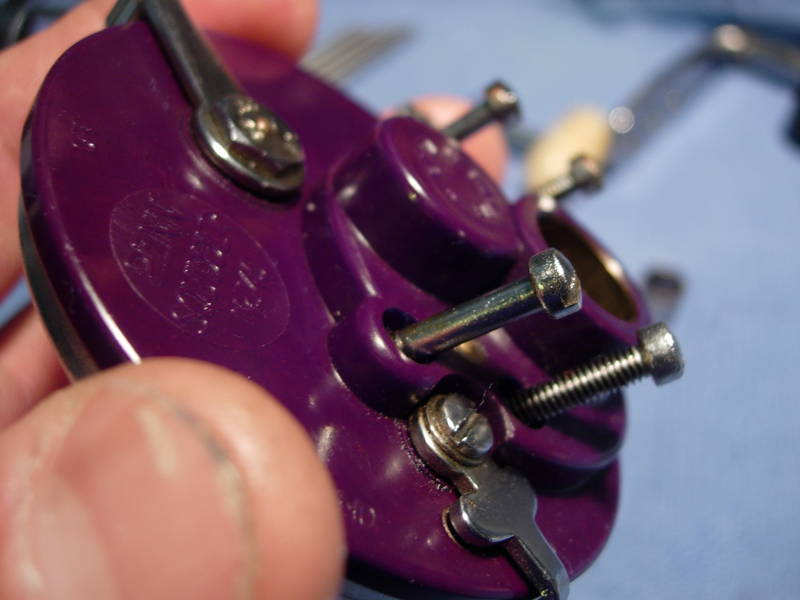

    first, install the bridge screws (key #'s 16 and 17). note that the screws that are threaded just at the tip go on top.

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_041.jpg

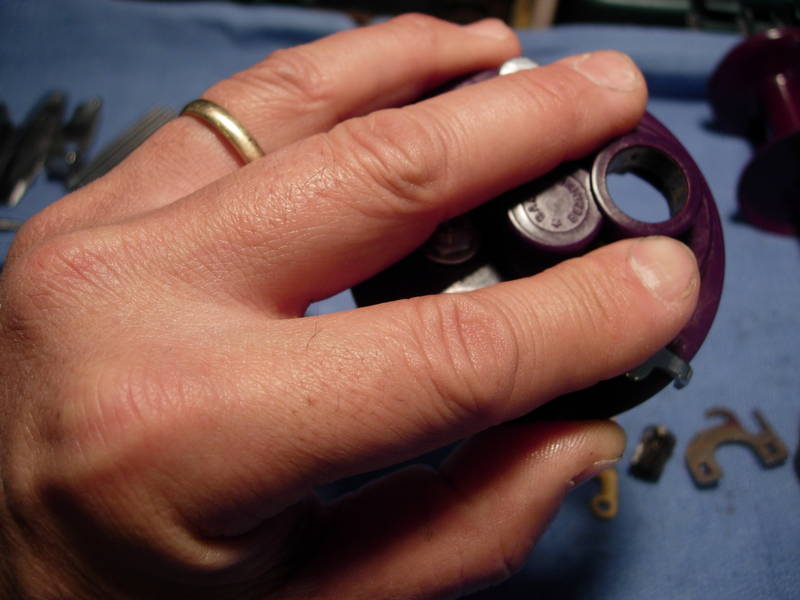

    your left index and middle finger cover the bridge screws. the right side plate (key #1) is held between your left thumb and ring finger.

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_042.jpg

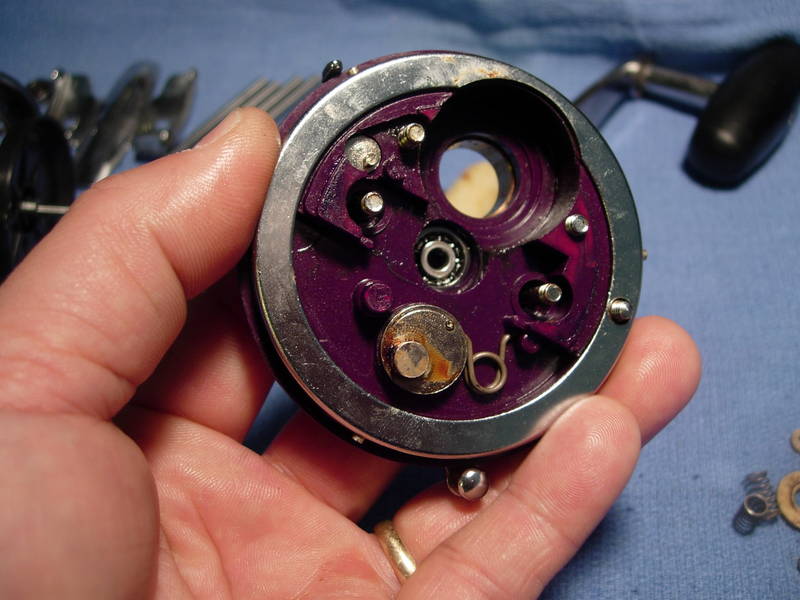

    now you can flip the side plate over with no risk of having the screws fall out.

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_043.jpg

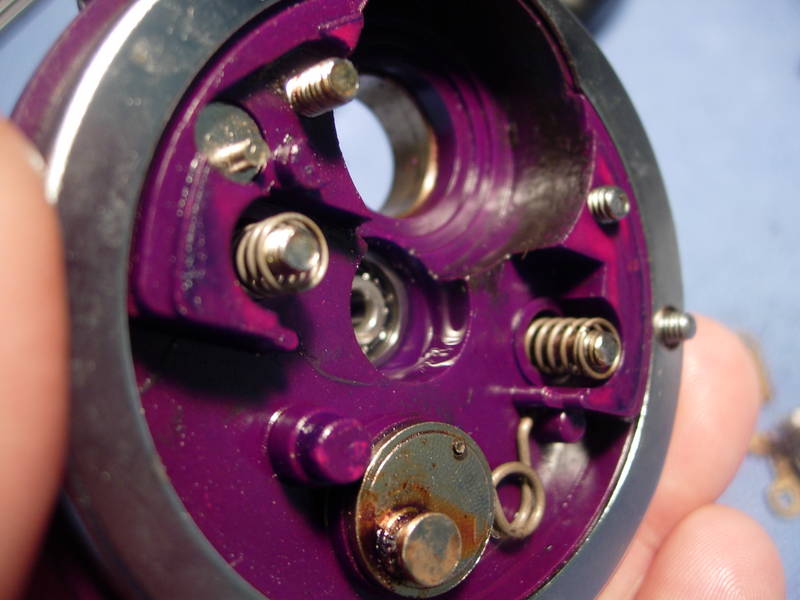

    install the clutch springs (key #18).

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_044.jpg

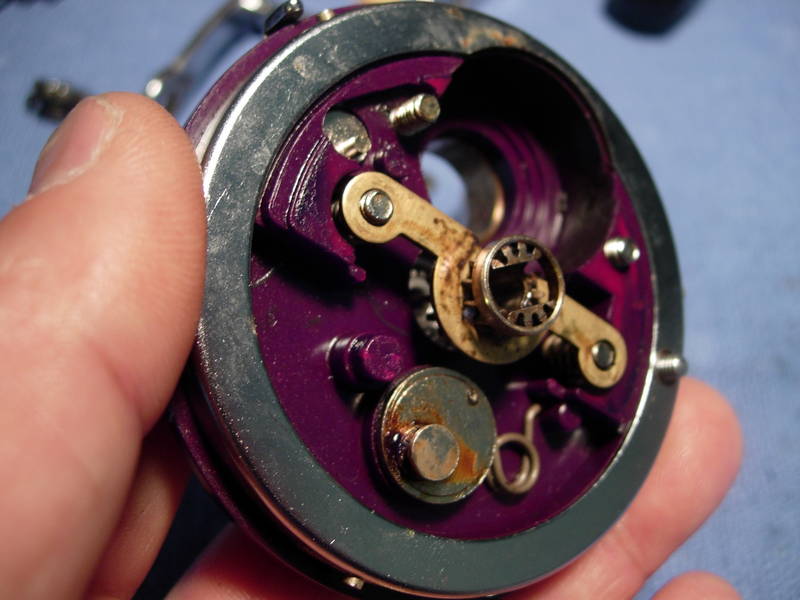

    install the pinion yoke (key #12) and pinion gear (key #13) as a unit.

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_045.jpg

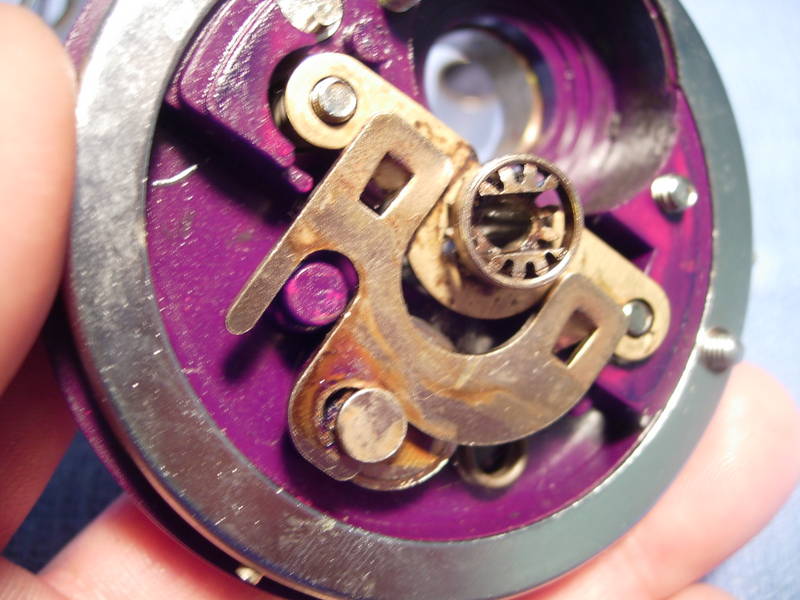

    install the eccentric jack (key #11).

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_046.jpg

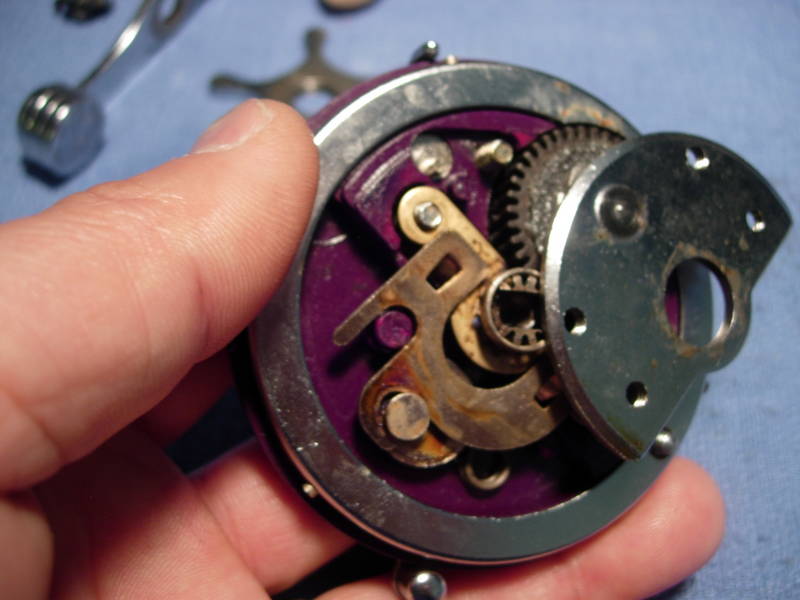

    install the bridge/main gear assembly, turned 90 degrees counterclockwise from it's final position.

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_047.jpg

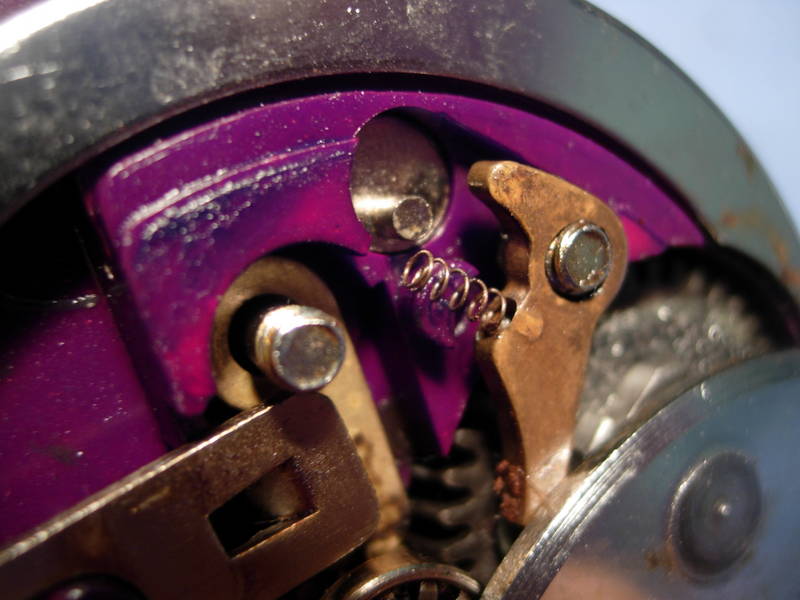

    install the dog (key #15) and dog spring (key #14) as a unit. lay it down over the bridge screw and note that the dog spring sticks out too far.

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_048.jpg

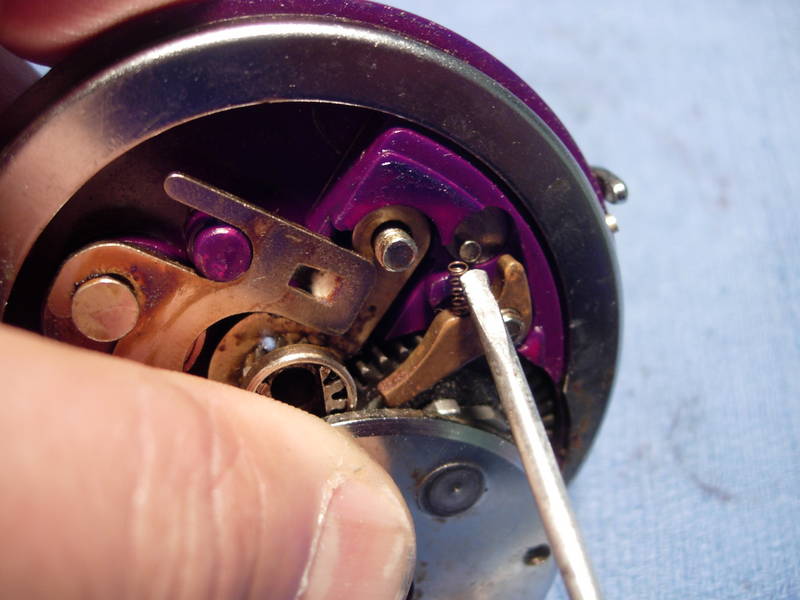

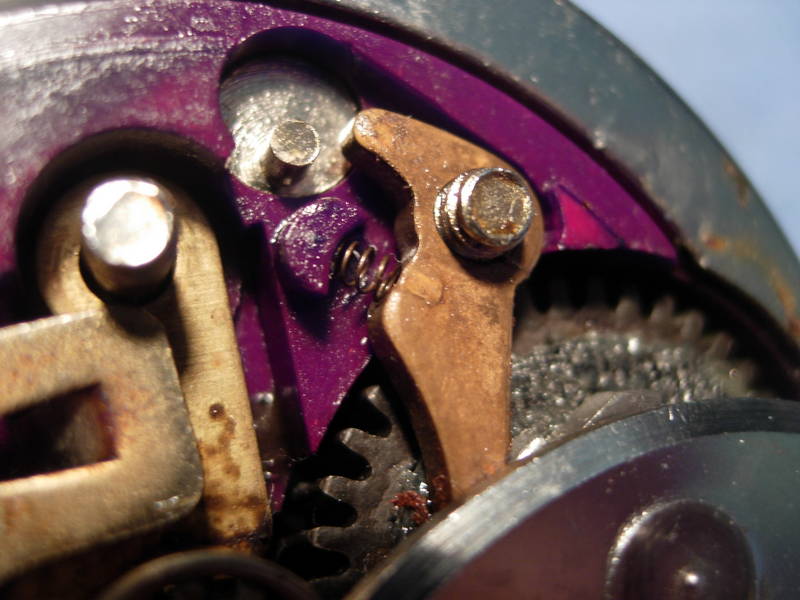

    press down on the bridge assembly with your left thumb. use the blade of a small flat screwdriver to push the dog spring down into it's final position.

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_049.jpg

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_050.jpg

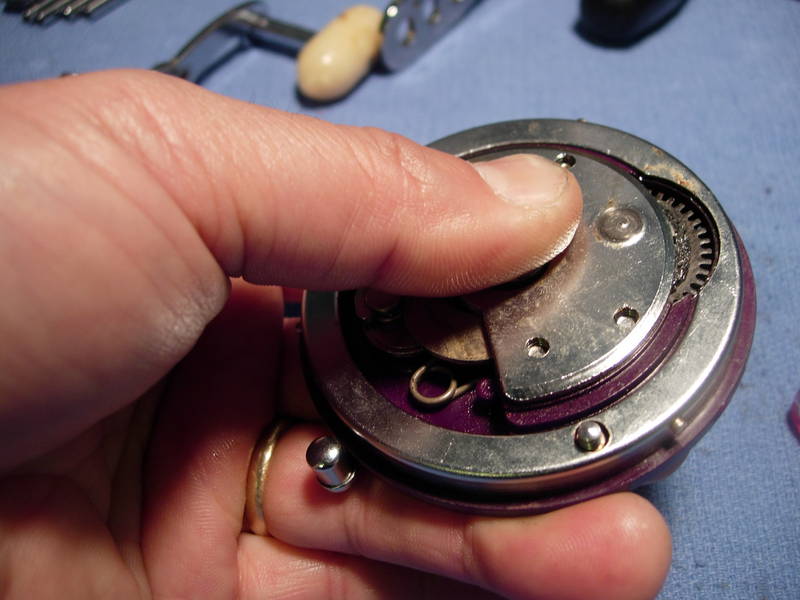

    rotate the bridge assembly 90 degrees clockwise and push it down into it's final position.

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_051.jpg

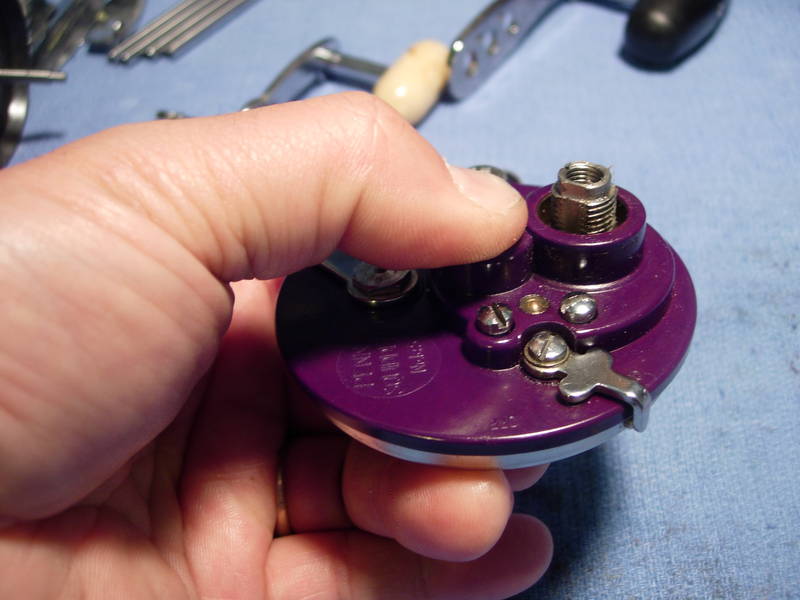

    with a right hand assist, flip the right side plate assembly over.

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_052.jpg

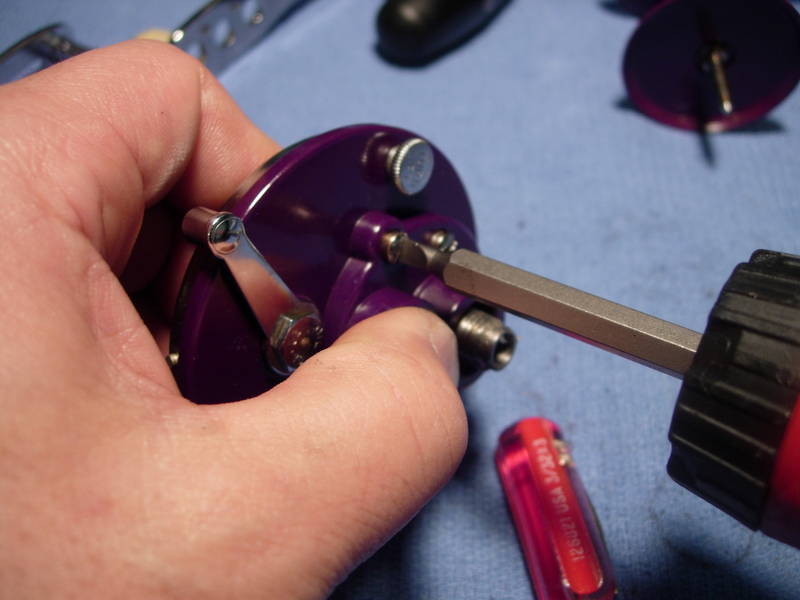

    start each bridge screw half way, then cinch down each screw until they are snug.

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_053.jpg

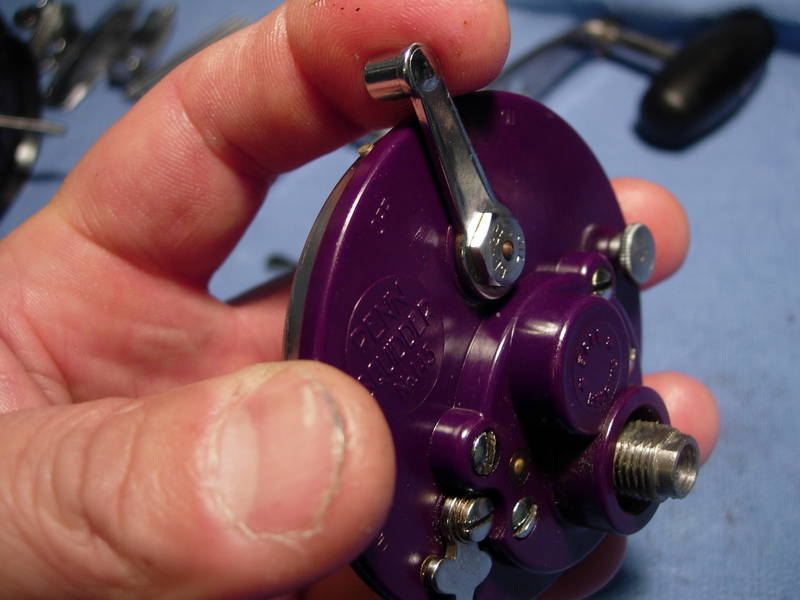

    verify that the freespool lever (key #21) works properly.

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_054.jpg

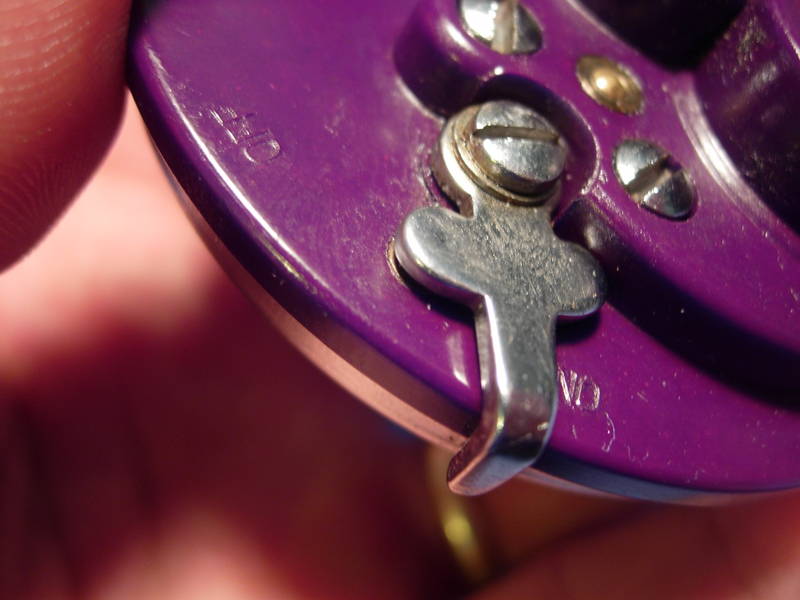

    verify that the secondary freespool lever (key #21C) functions properly. this lever allow the handle to turn backwards by disengaging the dog.

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_055.jpg

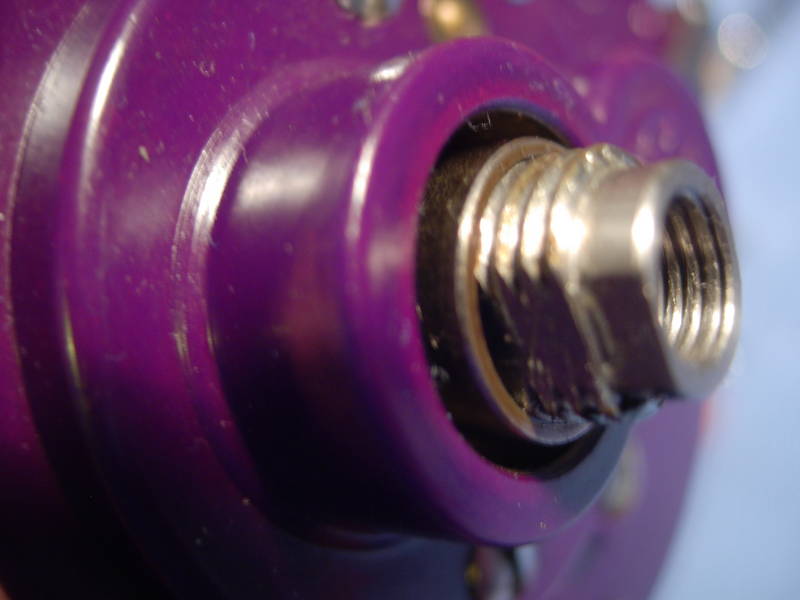

    install the spacing sleeve (key #9).

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_056.jpg

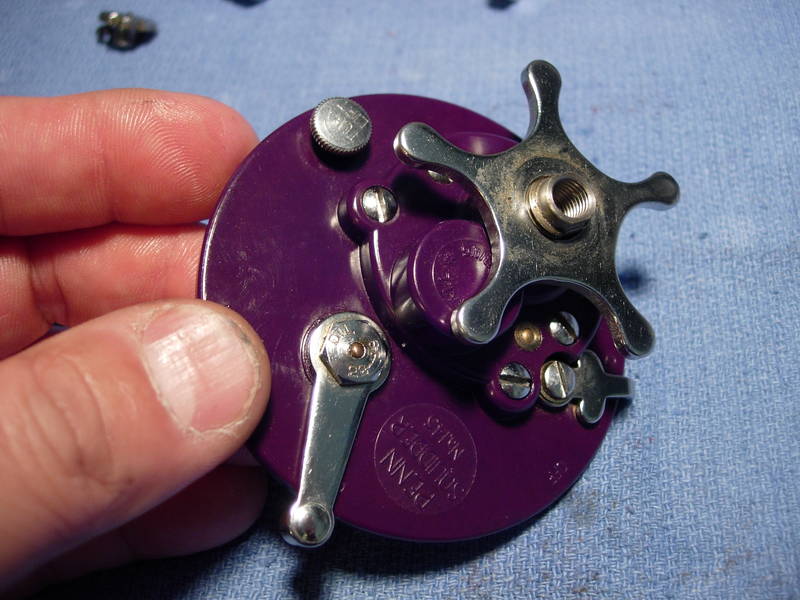

    install the star (key #10).

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_057.jpg

    install the upgraded handle (key #24). add a light coat of grease.

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_058.jpg

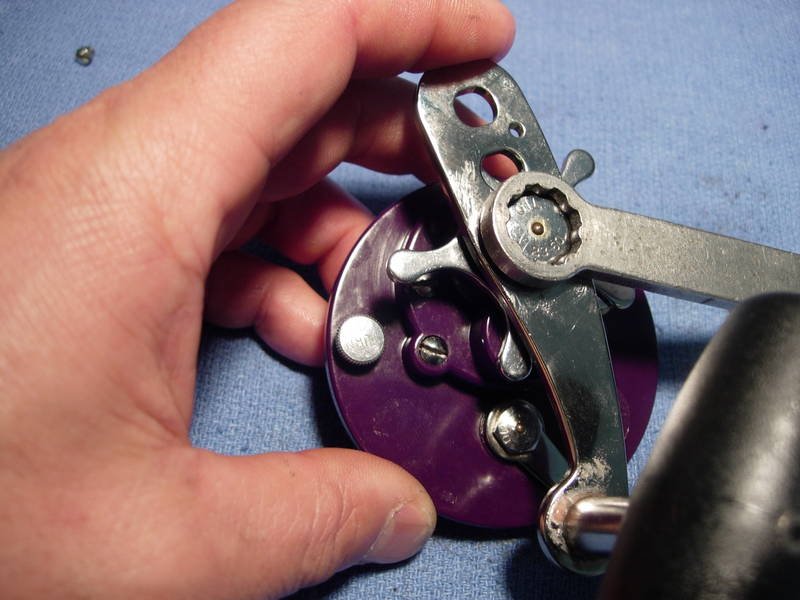

    install the handle screw (key #23).

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_059.jpg

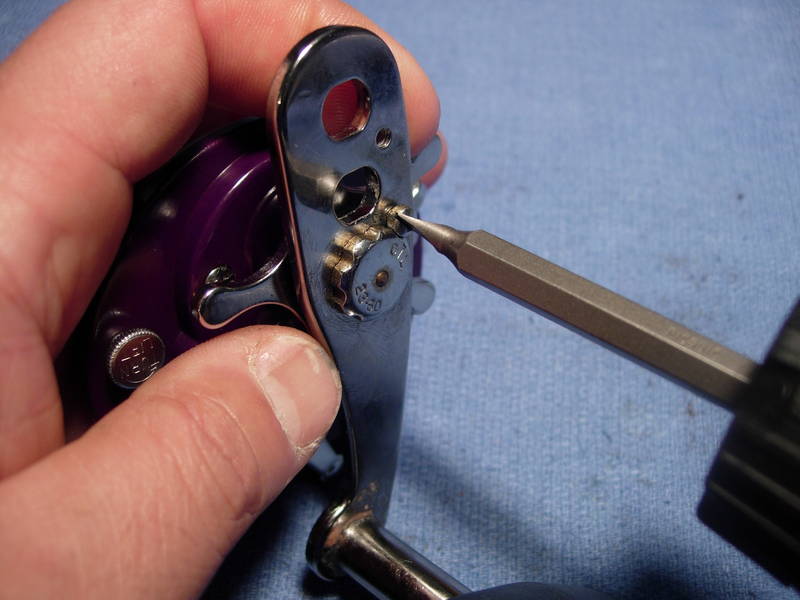

    install the handle lock screw (key #23A).

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_060.jpg

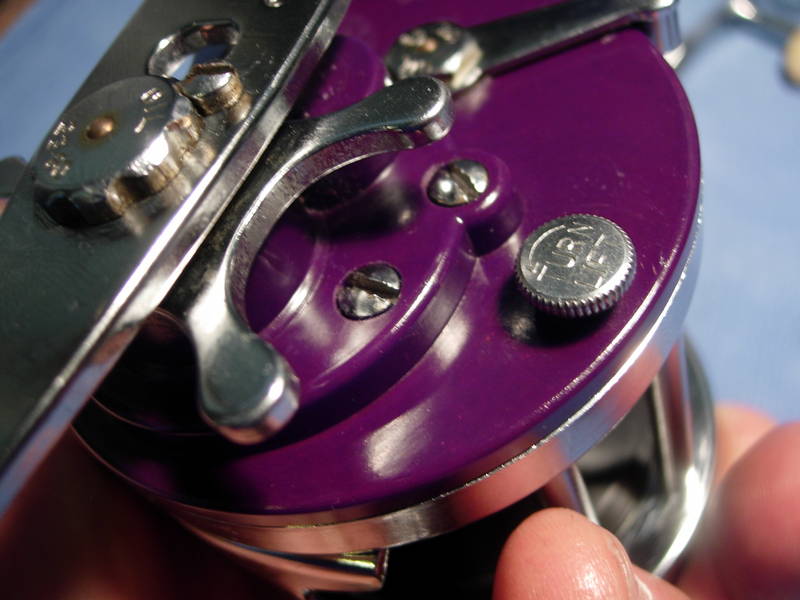

    press the right side plate assembly down into the right side ring (key #2) until it seats, turn the right side plate assembly clockwise until the take apart thumb screw (key #41) lines up with the threaded screw hole, and turn the thumb screw down until it seats.

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_061.jpg

    congratulations! you're done!

    http://www.fullspeedfishing.com/gallery/data/500/medium/squidder_062.jpg

    now, for a couple of comments. honestly, there is no way that this upgrade was anywhere near worth the time and expense that was required. but this was never about money, was it. i know one thing for sure. the new owner was a very proud and happy man. personally, i much prefer the balance that the narrowed frame offers. i like my reels "boxed out," having a spool that is as wide as it is tall. with greased carbon fiber drag washers, this reel will deliver a maximum of 12-15 pounds of drag at the top of the spool. the stock brass gear sleeve will start to round off at drag settings in excess of 8 pounds. the stainless steel gear sleeve will easily hold up under 15 pounds of drag. that means that this stainless steel gear sleeve is a worthwhile upgrade ONLY if you are going to fish a 10 pound drag setting with, say, straight 30# mono. that works out well, because the gap between the spool and side plate rings can be so large that the reel will eat 25 pound mono or less. it will also obviously eat spectra. this is an important point. this is not a spectra ready, or spectra worthy, reel.

    maintenance of this reel is very simple. the screw holes and drag washers will be good forever. it is a simple matter to strip off all the line, take the reel apart, flush it out with a full blast of water from a hose, blow out the bearings with compressed air, lube the bearings with more corrosion x, reassemble the reel, spool it up with more 30# mono, reset the drag and set it aside for the next fishing trip. if the bearings foul, you now know how to replace them. other than a fresh water rinse and blow dry, only the bearings are at risk for failure. if you are distance casting, you know that bearing maintenance is critical.

  2. scallop

    scallop Junior member

    4
    0
    This illustrated up grade of the Penn 140,145, 147 squidder is so good I recently purchased one. Can I find this sort of photo illustration for other Penn reels to help me service some of my reels such as these Penn reels, the 704Z, 710Z, 112H 3/0 Sen, and 320 GTi


  3. Manfred

    Manfred New Member

    1
    0
    What I`m doing wrong?
    You say:.... turn the screw counterclockwise, lift this spring-loaded screw a little, then turn the entire left side plate counterclockwise and remove the right side plate assembly.

    I got for 2 days ago the penn 140 squidder, looks like new. I tried to do remove the right side plate, but it not works for me.
