daiwa sealine-x 30shv rebuild

Discussion in 'Reel Repair' started by alantani, May 7, 2007.

  1. alantani

    alantani Senior Member

    453
    4
    fast and cheap. not a bad combination. fast means big gears and big drag washers. cheap in price, perfectly decent in quality. here's a link to the schematic ......

    http://mikesreelrepair.com/schematics/schematic.php?url=Daiwa/Daiwa%20Sealine%20-%20X20SHV,%20X30SHV.pdf

    and here is our reel, beat to a pulp, down but not out.

    [​IMG]

    this is a casting reel. for now, and in the future, we can service the bearings by pulling just the left side plate and spool. nice design. remove the three left side plate screws (key #1).

    [​IMG]

    that's all it takes to pull the spool.

    [​IMG]

    if this reel is going to used for distance casting and you will be servicing the bearings frequently, then let's remove all of the hardware covering/protecting the left spool bearing (key #9) to allow easy access. otherwise, let's leave it covered and just lube it up.

    [​IMG]

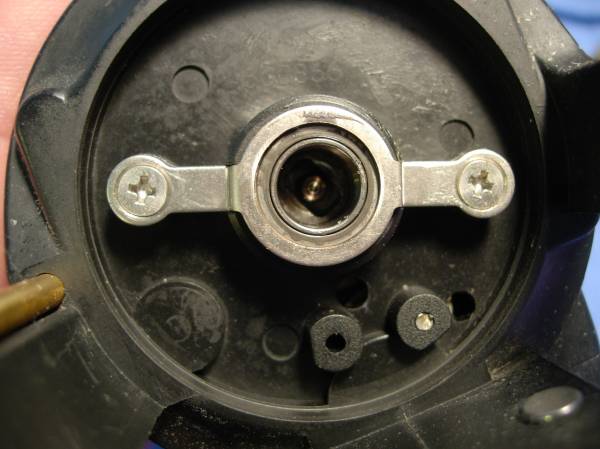

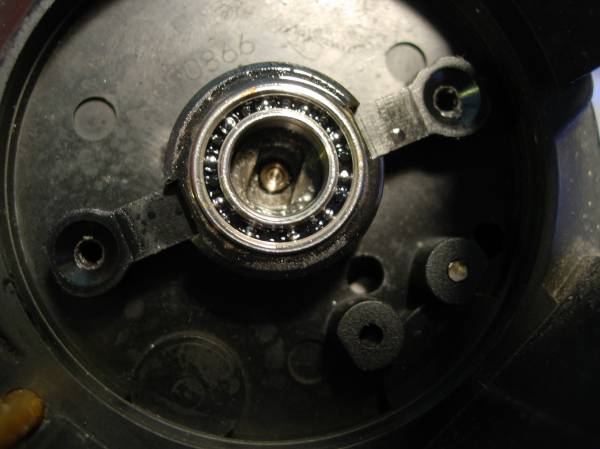

    the right spool bearing (key #23) is highly vulnerable and frequently fails.

    [​IMG]

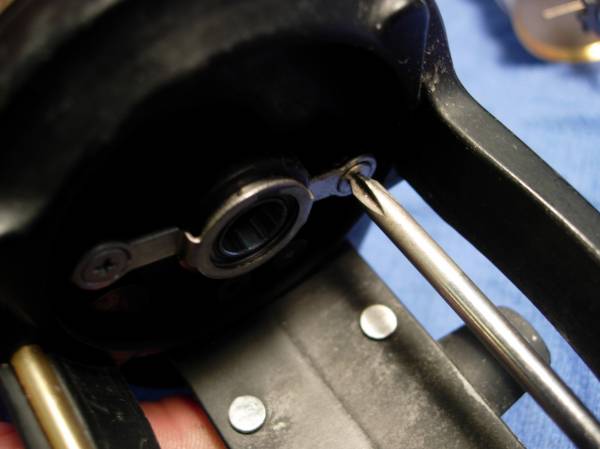

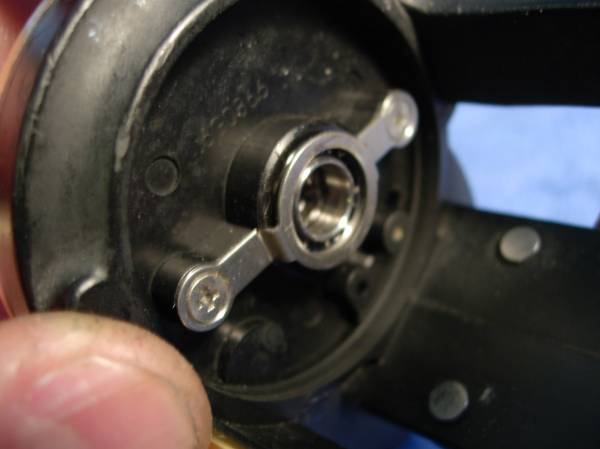

    at the very least, let'd pull it out and remove the shields. remove both bearing retainer screws (key #20) and the bearing retainer A (key #19).

    [​IMG]

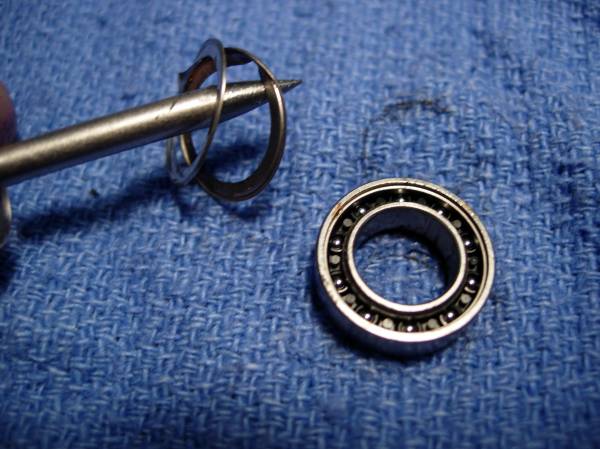

    review the bearings post for a description of the different types of bearings and maintenance options.

    [​IMG]

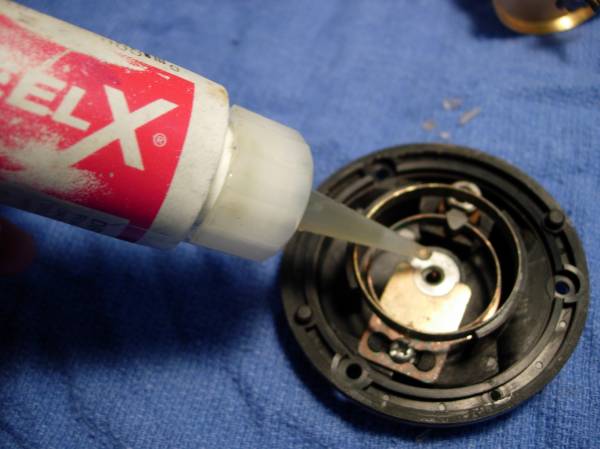

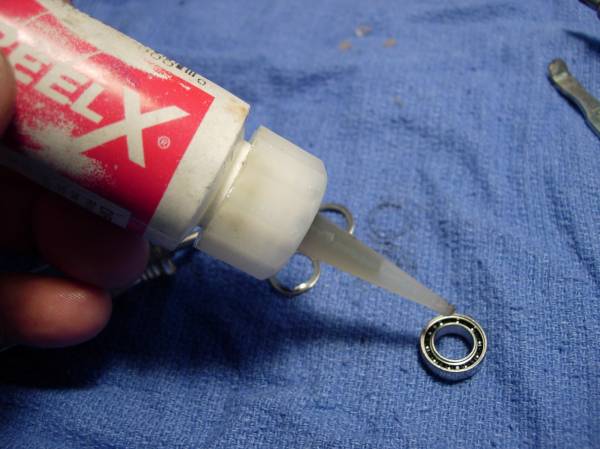

    i've opted to clean this bearing and lube it with corrosion x. if casting was not an issue, you could pack the bearing with grease as discussed in the bearing post.

    [​IMG]

    back in it goes.

    [​IMG]

    [​IMG]

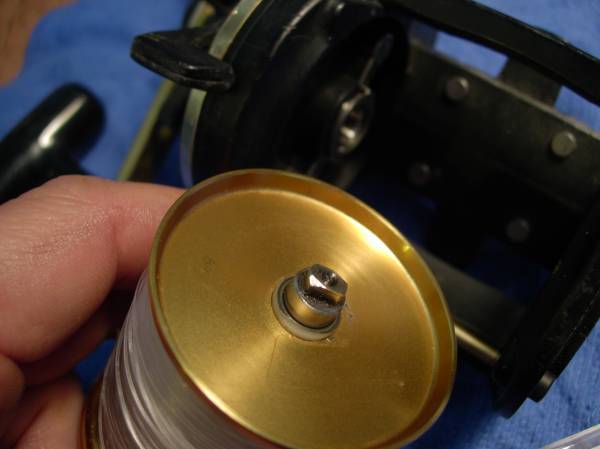

    reinstall the spool (key #17).

    http://www.fullspeedfishing.com/gallery/data/500/medium/Picture_153.jpg

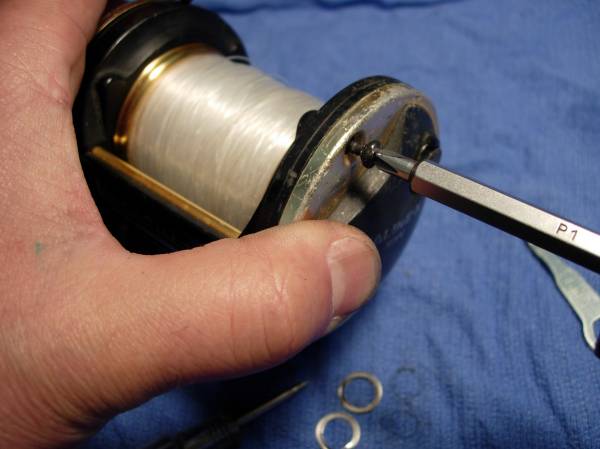

    reinstall the left side plate assembly.

    http://www.fullspeedfishing.com/gallery/data/500/medium/Picture_154.jpg

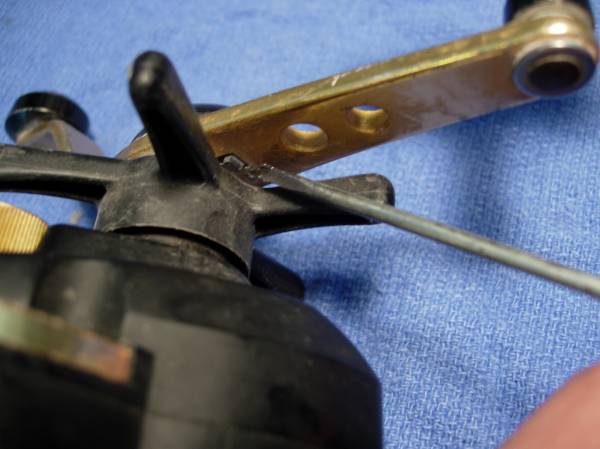

    now, for the right side plate assembly. first, let's remove the handle nut plate (key #78) by pushing on two small tabs underneath the handle arm.

    http://www.fullspeedfishing.com/gallery/data/500/medium/Picture_155.jpg

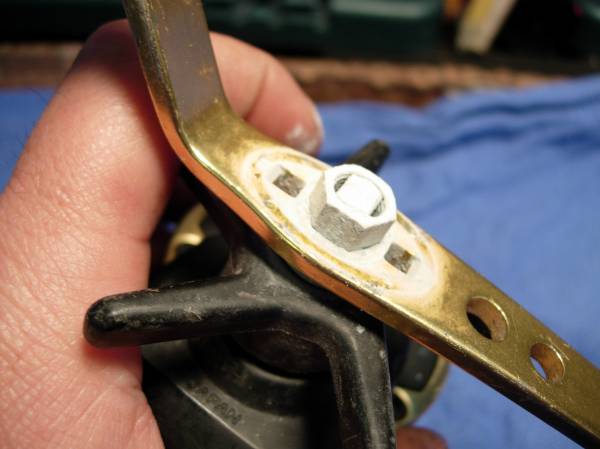

    ok, so these daiwa's are not the most corrosion resistant reels in the world. actually, any reel with a handle nut cap has problems. i see this commonly. remove the handle nut (key #77). then remove the handle (key #76). this is where it can get ugly. if it's badly stuck, then wiggle it anyway you can just to loosen it a little, then start backing out the star (key #74) counterclockwise to force the handle off. yes, you run the risk of damaging the star and/or the drive shaft (key #59). you could soak it in penetrating oil first, but, honestly, this usually works.

    http://www.fullspeedfishing.com/gallery/data/500/medium/Picture_156.jpg

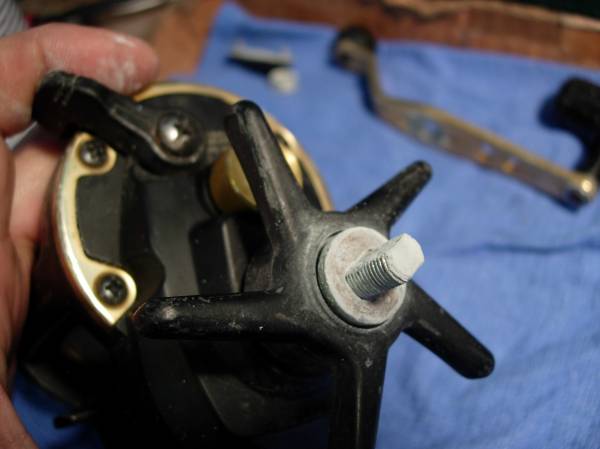

    see, i told you it would work!!!!!! now, remove the spacing sleeve (key #75) and the star drag (key #74).

    http://www.fullspeedfishing.com/gallery/data/500/medium/Picture_157.jpg

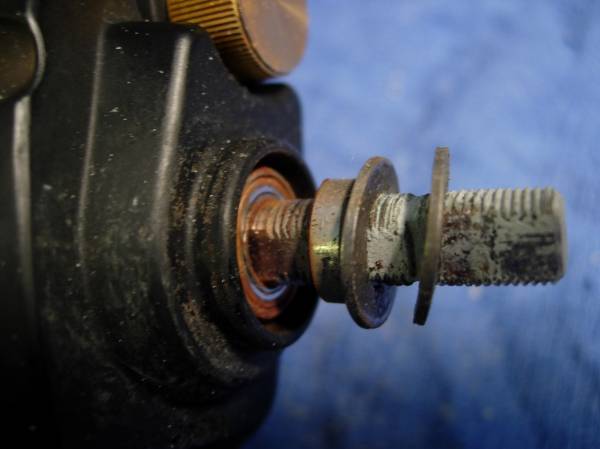

    remove the drag spring washers (key #73) and bearing washer B (key #72). note that the spring washers are cupped "()".

    http://www.fullspeedfishing.com/gallery/data/500/medium/Picture_158.jpg

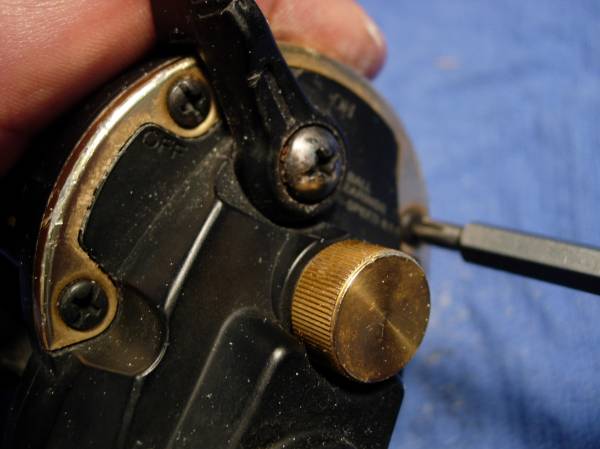

    now for the right side plate. remove the four right side plate screw A's (key #46) and the two right side plate screw B's (key #47). take note, they are different. also, there is no need to remove the clutch lever (key #42) or the cast control cap (key #54), so let's leave them in place.

    http://www.fullspeedfishing.com/gallery/data/500/medium/Picture_159.jpg

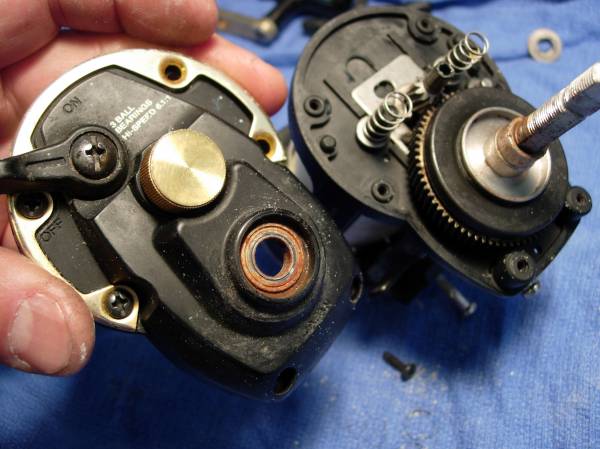

    remove the right side plate assembly (key #41). it will lift off cleanly. note that the bearing (key #71) stayed with the side plate. pull it out and set it in line with everything else, or just leave it there for now.

    http://www.fullspeedfishing.com/gallery/data/500/medium/Picture_160.jpg

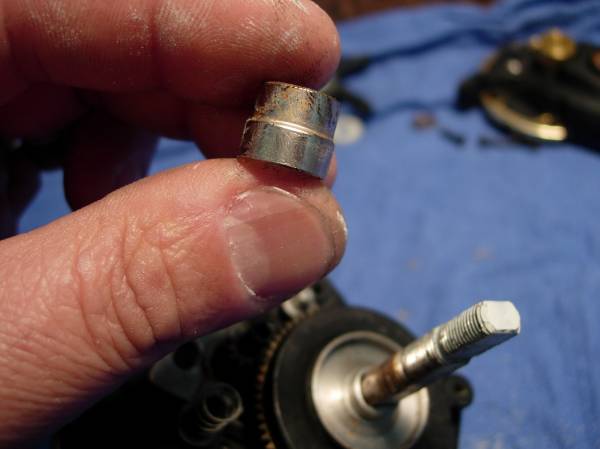

    remove collar B (key #70).

    http://www.fullspeedfishing.com/gallery/data/500/medium/Picture_161.jpg

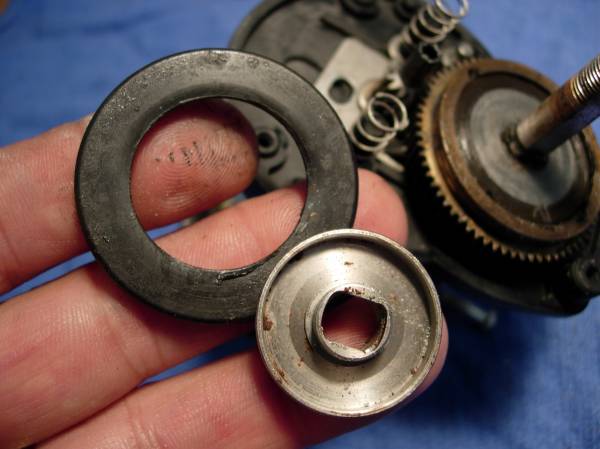

    remove collar A (key #69) and the water shield (key #68).

    http://www.fullspeedfishing.com/gallery/data/500/medium/Picture_162.jpg

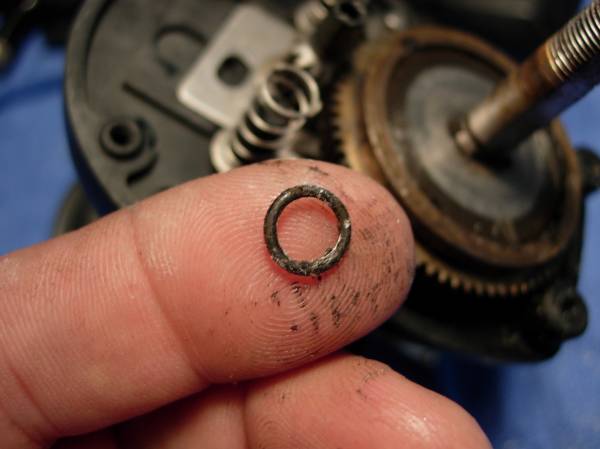

    remove o-ring C (key #67). look carefully, it's there, and it's a hassle to remove. if you tear it, don't worry. it's no big deal.

    http://www.fullspeedfishing.com/gallery/data/500/medium/Picture_163.jpg

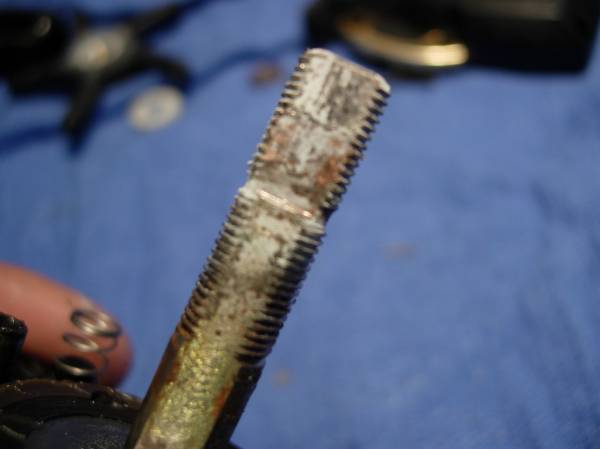

    when you bolt down the handle, a small burr forms on the drive shaft (key #59). to make it easier to remove the metal drag washer and the main gear, let's take a flat file and file off the burr.

    http://www.fullspeedfishing.com/gallery/data/500/medium/Picture_164.jpg

    http://www.fullspeedfishing.com/gallery/data/500/medium/Picture_165.jpg

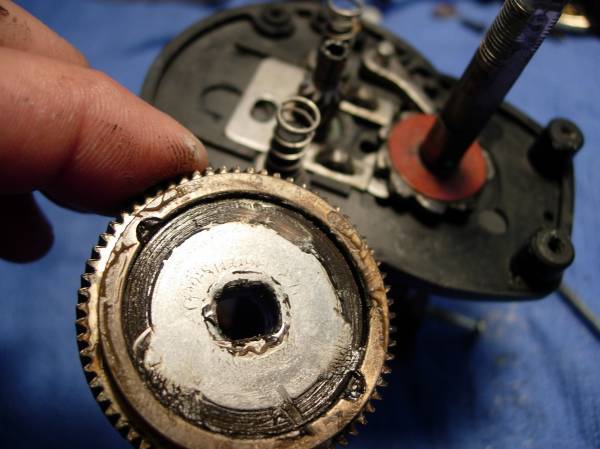

    now the entire gear cluster slides right off.

    http://www.fullspeedfishing.com/gallery/data/500/medium/Picture_166.jpg

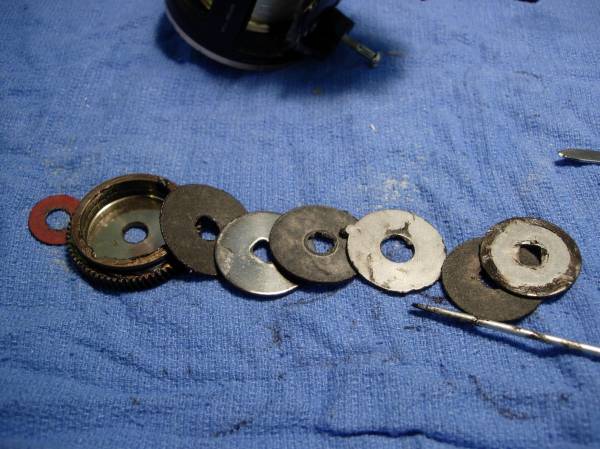

    separate everything out, keep things in order, and clean everything up. note that the metal washers alternate keyed (key #65) - eared (key #66) - keyed (key #65).

    http://www.fullspeedfishing.com/gallery/data/500/medium/Picture_167.jpg

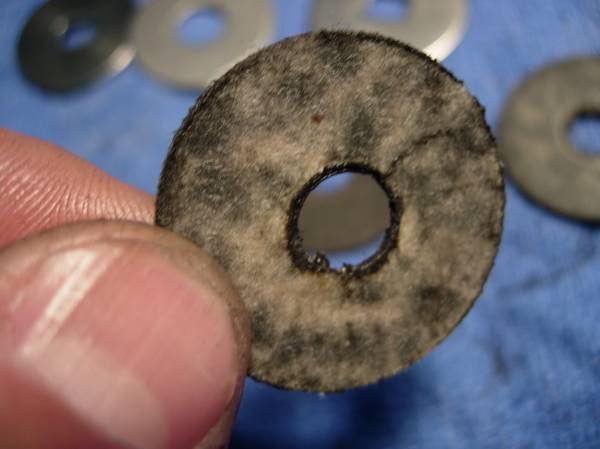

    these felt washers started out off-white and often turn to black.

    http://www.fullspeedfishing.com/gallery/data/500/medium/Picture_168.jpg

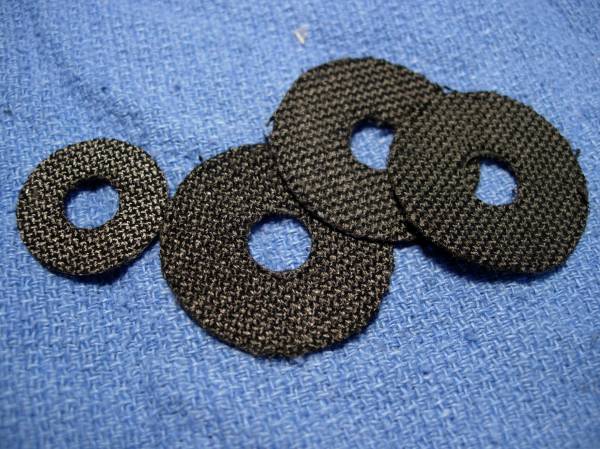

    until smoothdrag.com has a set of carbontex washers for this reel, you'll have to use penn ht-100 washers. the smaller washer is a penn ht-100 #6-965 that has been ground down to a 15mm outer diameter. you can use the full sized washer, though, and it goes under the gear. the three larger washers go inside the gear. they are part #56-440. the fit is not exact, and you have to cut off the "keys," but it's close enough until a set of carbotex washers become available. the washers are available from your local penn dealer, or from pennparts.com.

    http://www.fullspeedfishing.com/gallery/data/500/medium/Picture_169.jpg

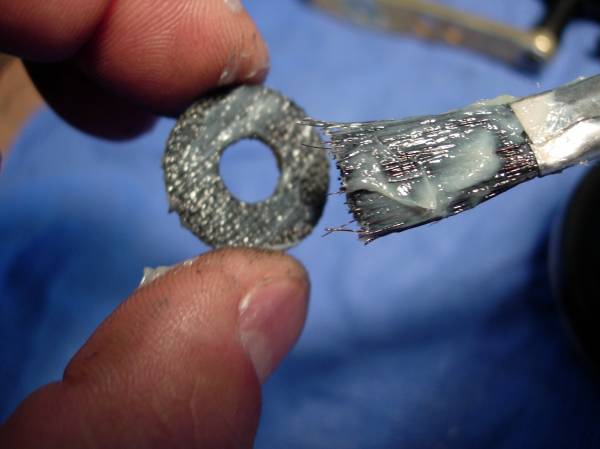

    slap a thick coat of shimano or cal's drag grease on the drag washers. let the excess ooze out the sides.

    http://www.fullspeedfishing.com/gallery/data/500/medium/Picture_170.jpg

    rebuild the drag stack and alternate the metal washers "keyed/eared/keyed."

    http://www.fullspeedfishing.com/gallery/data/500/medium/Picture_171.jpg

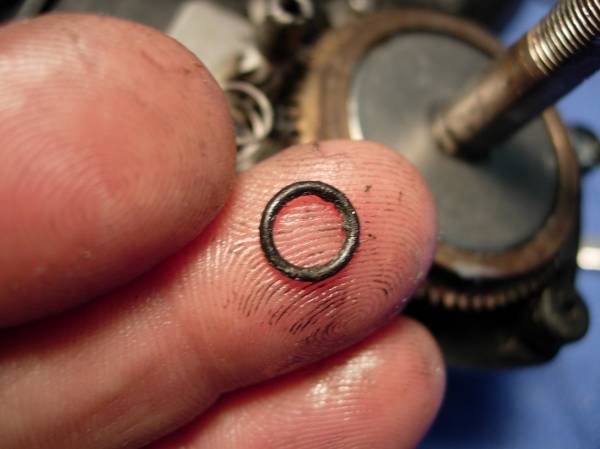

    replace the o-ring (key #67) if you still have it.

    http://www.fullspeedfishing.com/gallery/data/500/medium/Picture_172.jpg

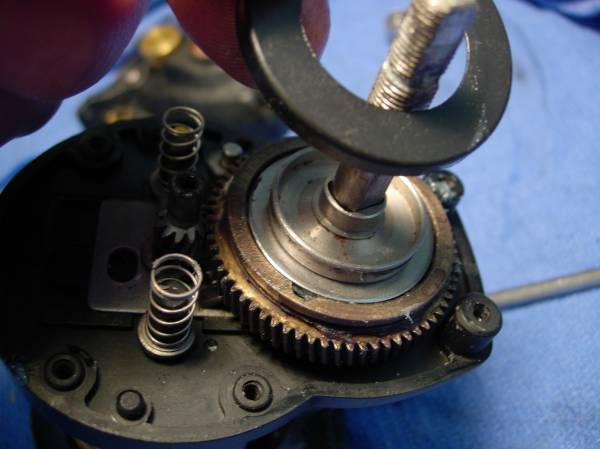

    replace collar A (key #69) and the water shield (key #68).

    http://www.fullspeedfishing.com/gallery/data/500/medium/Picture_173.jpg

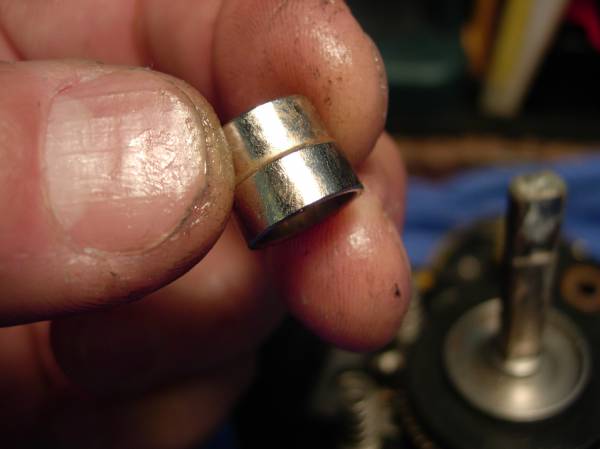

    replace collar B (key #70) and make sure it goes in "skinny side up."

    http://www.fullspeedfishing.com/gallery/data/500/medium/Picture_174.jpg

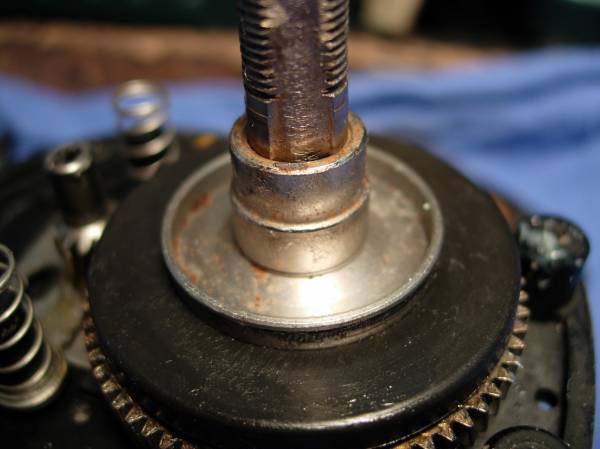

    almost there. everything ok so far?

    http://www.fullspeedfishing.com/gallery/data/500/medium/Picture_175.jpg

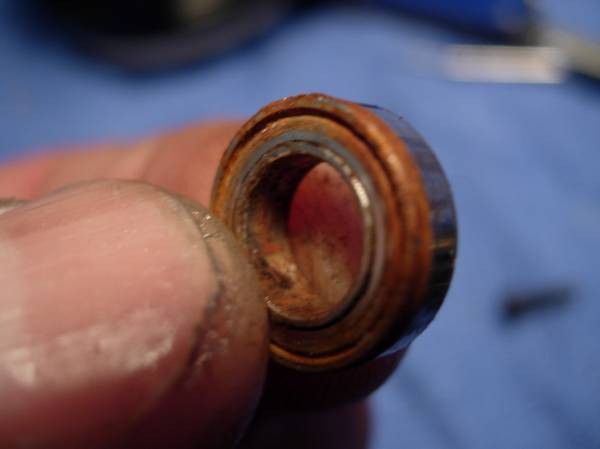

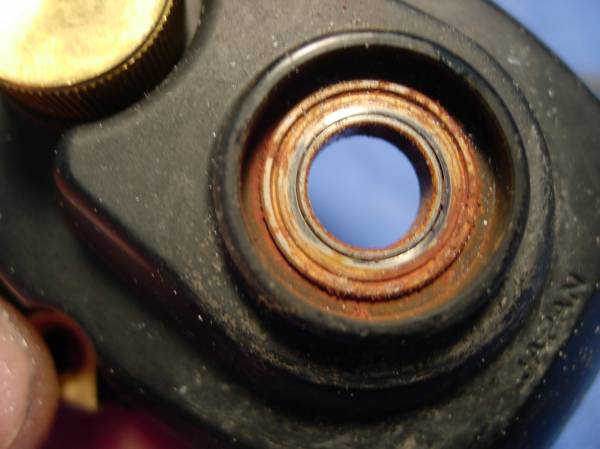

    now, about that bearing (key #71). sorry, it's toast. it's a very common problem. and don't be disappointed. not a single reel manufacturer anywhere, from accurate to zelina, will take the time to adequately pack these drive shaft bearings with grease.

    http://www.fullspeedfishing.com/gallery/data/500/medium/Picture_176.jpg

    http://www.fullspeedfishing.com/gallery/data/500/medium/Picture_177.jpg

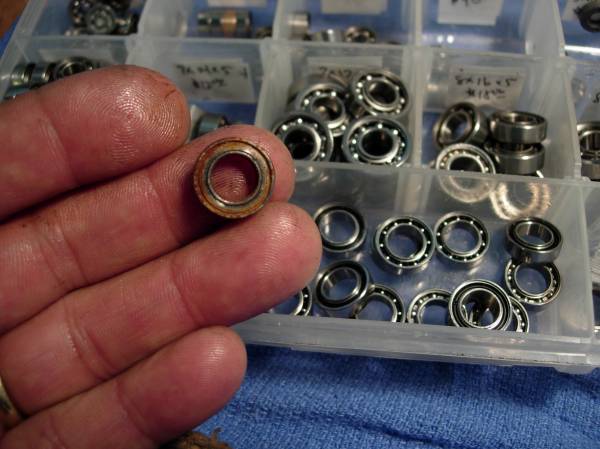

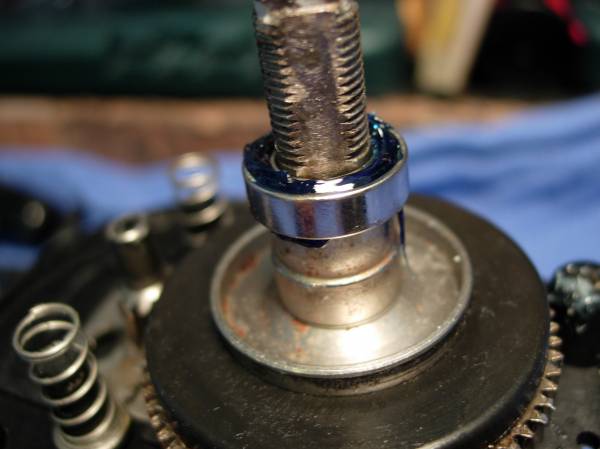

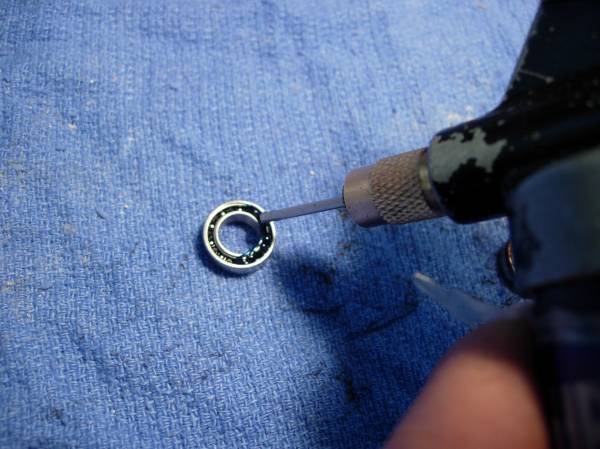

    so let's replace it with a new bearing, pack that bearing with grease and put it back on the drive shaft.

    http://www.fullspeedfishing.com/gallery/data/500/medium/Picture_178.jpg

    http://www.fullspeedfishing.com/gallery/data/500/medium/Picture_179.jpg

    http://www.fullspeedfishing.com/gallery/data/500/medium/Picture_180.jpg

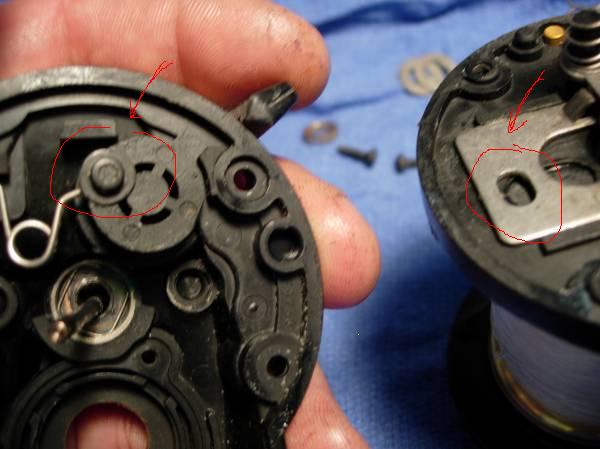

    let's install the side plate (key #41). first, the round peg on the clutch cam (key #39) has to match up with the oval hole of the yoke plate (key #28).

    http://www.fullspeedfishing.com/gallery/data/500/Picture_1811.jpg

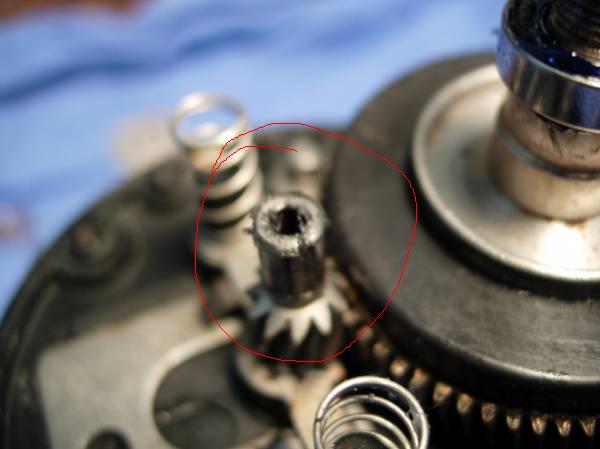

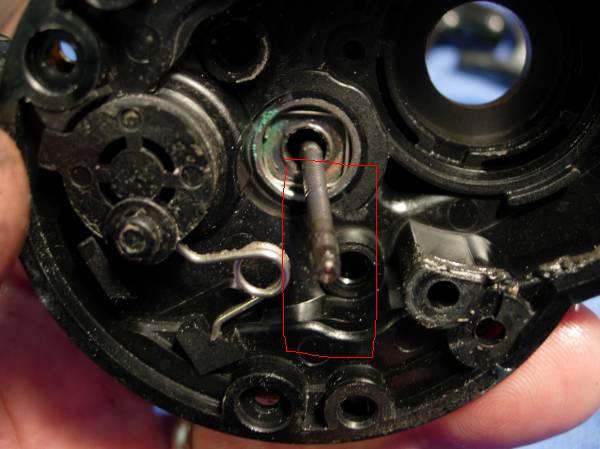

    second, the point of the pinion shaft (key #49) has to match up with the hole in the pinion gear (key #32).

    http://www.fullspeedfishing.com/gallery/data/500/Picture_1821.jpg

    http://www.fullspeedfishing.com/gallery/data/500/Picture_1831.jpg

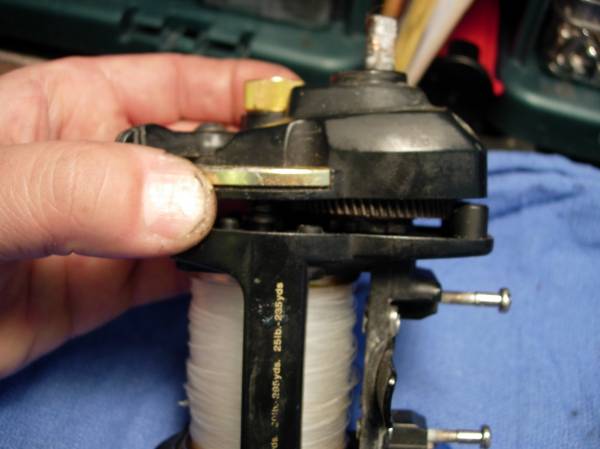

    ok, everything is lined up properly, right?

    http://www.fullspeedfishing.com/gallery/data/500/medium/Picture_184.jpg

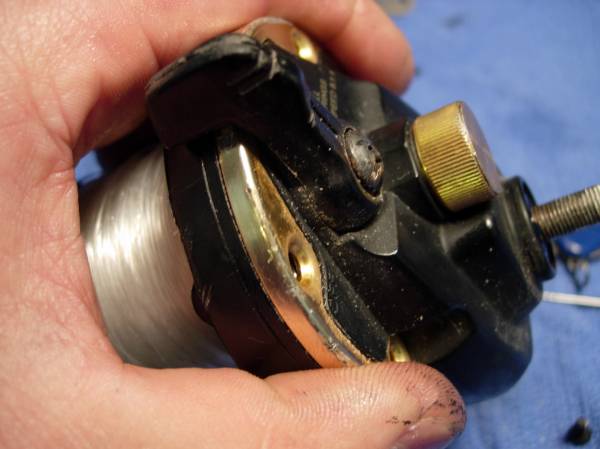

    perfect! you're in!!! no? ok, wiggle the clutch lever (key #42) just a little. got it!

    http://www.fullspeedfishing.com/gallery/data/500/medium/Picture_185.jpg

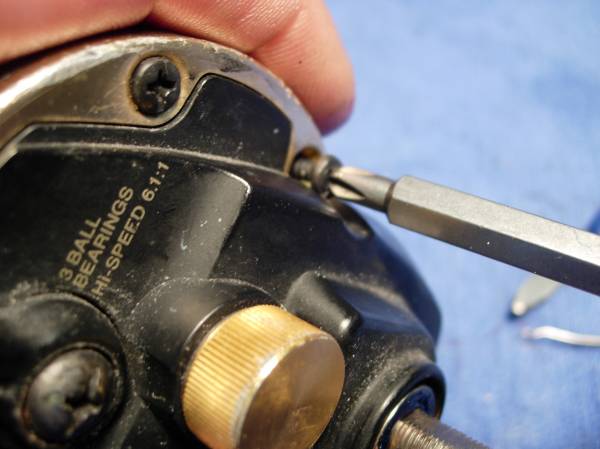

    reinstall side plate screws A (key #46) and B (key #47).

    http://www.fullspeedfishing.com/gallery/data/500/medium/Picture_186.jpg

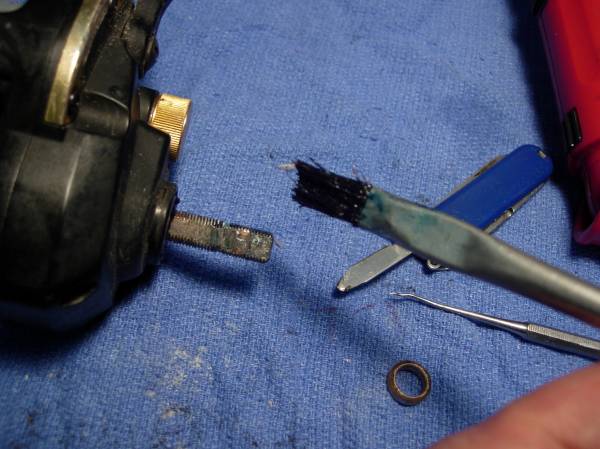

    paint a little grease on the drive shaft (key #59). remember all the trouble we had getting the handle off?

    http://www.fullspeedfishing.com/gallery/data/500/medium/Picture_187.jpg

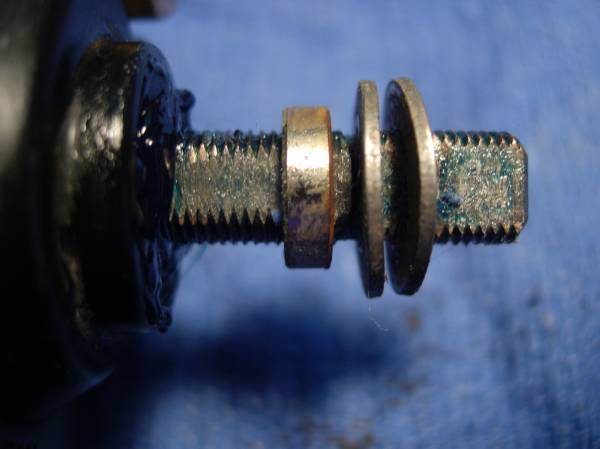

    install the bearing washer B (key #72) and the drag spring washers (key #73) oriented "()".

    http://www.fullspeedfishing.com/gallery/data/500/medium/Picture_188.jpg

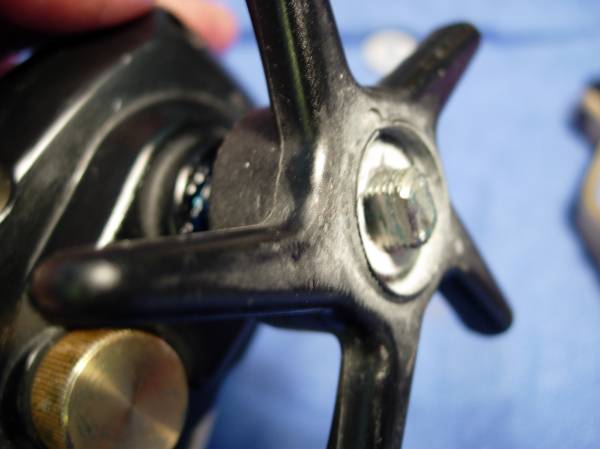

    install the star (key #74).

    http://www.fullspeedfishing.com/gallery/data/500/medium/Picture_189.jpg

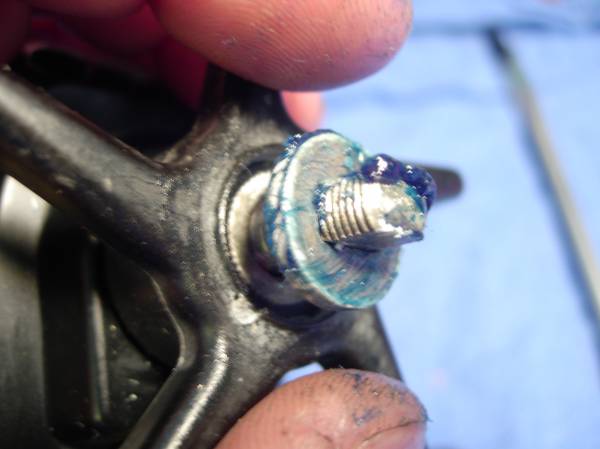

    paint a little grease on the spacing sleeve (key #75) and install it.

    http://www.fullspeedfishing.com/gallery/data/500/medium/Picture_190.jpg

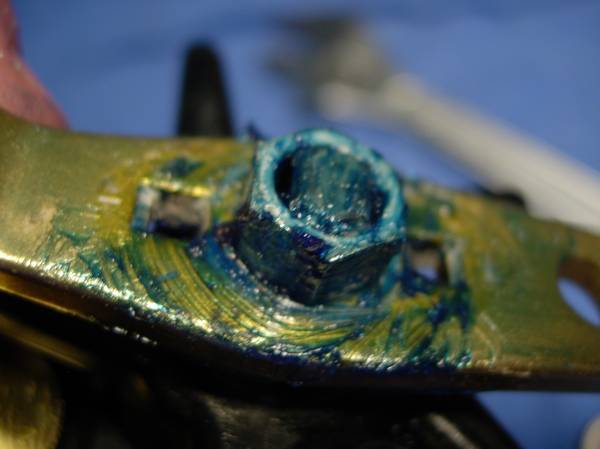

    install the handle (key #76), the handle nut (key #77), paint on a little extra grease and then install the handle nut cap (key #78).

    http://www.fullspeedfishing.com/gallery/data/500/medium/Picture_192.jpg

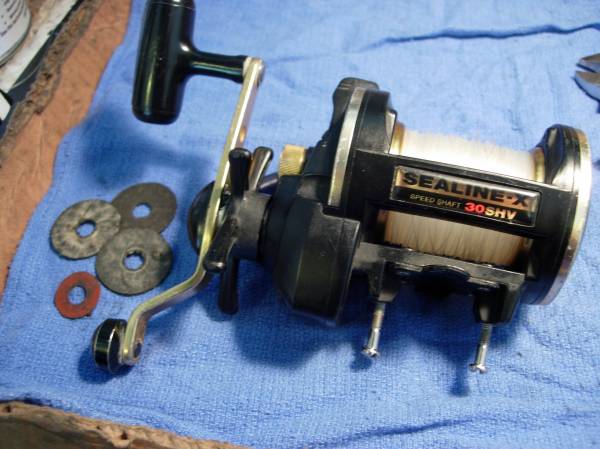

    done!

    http://www.fullspeedfishing.com/gallery/data/500/medium/Picture_193.jpg

    ok, a couple of editorial comments. these reels cast great. the speed shaft means that you do not have a spool shaft hanging up on the pinion gear to slow down the spool. these reels, then, will cast just as well as a lever drag reel that has a spool with the same overall mass. the drags are huge, but you get that with any high speed star drag reel. i've never heard of any of these graphite frames breaking and these frames do not corrode. and lastly, i hate the handles. hey, three out of four is not so bad. so if you're looking for a fast, light, strong, inexpensive reel, take a look at the daiwa sealine-x!
