blue heaven L 120 R

Discussion in 'Reel Repair' started by alantani, Jan 30, 2009.

  1. alantani

    alantani Senior Member

    453
    4
    this was shipped from texas last year. it's a blue heaven L 120 R.........

    [​IMG]

    here's a link to the manufacturer's website.

    STUDIO Ocean Mark.com

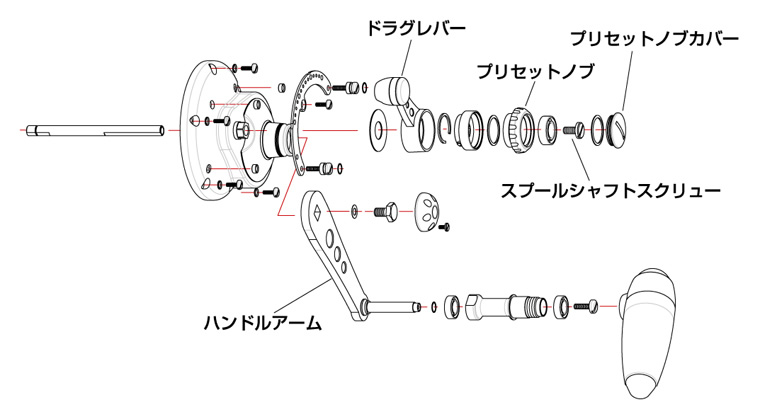

    these are the only schematics that i was able to find.

    [​IMG]

    prior to cracking this reel open, the only thing i knew about this reel was that it had cork drags.

    [​IMG]

    here are a couple of close ups to get you acquainted with our new friend.

    [​IMG]

    "dual one way roller and high modular gear box" is translated as having a pair of anti-reverse roller bearings stacked up one on top of the other and a big main gear.

    [​IMG]

    the quadrant is marked with "min, stike, fight and max" but there are no detents to stop the lever. the holes in the quadrant are for the click mechanism only. the notches seen on the top of the quadrant allow removal of the side plate screws without removal of the quadrant first.

    [​IMG]

    i got a good chuckle with this. i'm not sure that thumbing the spool will add much to a 20, 25 or 30# drag setting.

    [​IMG]

    the spool is about 34mm wide.

    [​IMG]

    the height of the spool is about 67mm.

    [​IMG]

    the handle arm is 90mm from axis to axis.

    [​IMG]

    the handle grip is tapered and 30mm at it's widest point.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4502.JPG

    the overall length is about 91mm.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4503.JPG

    to avoid infringing on tiburon's t-bar patent, this handle needs to have a 9 degree offset or less. tiburon's patent goes from 10 to 25 degrees. i will let someone else measure this one.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4504.JPG

    the reel seat is stamped stainless steel and it's held with four stainless steel machine screws.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4505.JPG

    what do you think? maybe a 135 degree throw on the lever?

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4506.JPG

    the gear case cover tells us we have a 4.9 to 1 gear ratio.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN45071.JPG

    individually numbered reels. nice touch.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4508.JPG

    let's run the reel through it's paces. judging by the water spots and a little salt accumulation, it is fair to say that this reel has been fished already. keep that in mind. first, the preset knob was backed off all the way. spinning the spool several times, i got a consistent 12 seconds of freespool. um, not very impressive, but not necessarily deal killer either. second, i turned the preset knob down until the drag pressure plates inside came in contact with the drag washer. then i backed off the preset knob until the the pressure plates lost contact. this will give me the maximum drag at strike before losing freespool. at this setting, the freespool remained at 12 seconds.

    the corresponding drags pressures measured at each setting are 1 pound at min, 6 pounds at strike, 18 pounds at fight and over 30 pounds at max. basically at max, the drag locked down. i am logging this down as greater than 30 pounds because i did not want to pull any further. of concern is the fact that the handle became increasingly difficult to turn at higher drag settings. this points to an issue with the right main side plate bearing.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4511.JPG

    remember those notches in the quadrant? they'll come in handy when we pull the side plate.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4509.JPG

    let's back out each screw.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4513.JPG

    the reel breaks down easily into two pieces.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4514.JPG

    the side plate screws appear dry but they have a rubber o-ring. i would prefer grease.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4516.JPG

    here's a look down the throat of the frame assembly. the left side plate bearing will need to be checked for grease, but don't pull on it just yet.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4515.JPG

    back out both screws and remove the name plate.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4521.JPG

    a small suprise awaits.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4522.JPG

    the bearing is flanged. you could have pulled from the inside all day and it never would have budged.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4523.JPG

    it measures 6x12x4.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4524.JPG

    this bearing was well greased on both sides. we will grease it again, anyway.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4525.JPG

    back into the side plate it goes, followed by the name plate.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4526.JPG

    let's check the gear case cover.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4527.JPG

    hmmmm, the screws are dry as a bone.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4528.JPG

    remember the the daiwa saltiga frame that i cracked? let's not go for a repeat performance of that stunt. we'll oil the screws instead.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4529.JPG

    back in it goes.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4530.JPG

    check the reel seat screws.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4531.JPG

    dry as a bone and loose! just a little red loctite and a little salt. glad we caught this one when we did.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4532.JPG

    what to do about the reel seat? if you just use loctite, corrosion will lock up the screws and/or eat away at the aluminum to make the threads loose. if you grease the screw holes, you avoid corrosion but the screws might back out on you. you must pay your money and take your choice. i will grease the screws and screw holes, then torque down the screws nice and tight. if you do this, you will have to make it a point to wiggle the reel while it's on the rod and make sure it's not loose. i'm greasing these.....

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4533.JPG

    ok, the frame assembly is done. let's set it aside.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4534.JPG

    use a wide, well fitting blade to remove the preset knob cap. let's not leave any tool marks on the soft aluminum.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4535.JPG

    now we need to remove the spool shaft screw.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4536.JPG

    use a crescent wrench to hold the left side of the spool shaft.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4537.JPG

    hold the spool shaft with the crescent wrench and remove the spool shaft screw.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4538.JPG

    out comes the spool shaft screw.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4539.JPG

    out comes the spool.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4540.JPG

    like the old swordsmiths of feudal japan, these gentlemen signed their work.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4541.JPG

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4542.JPG

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4543.JPG

    remember the problem we had cranking the handle at higher drag settings? here's the reason. it's the right main side plate bearing and it's already rusted. it measures 6x19x6. water was likely allowed to pool with the reel on it's right side, water seeped in and the bearing rusted tight. a new bearing from bocabearings.com will fix this.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4544.JPG

    the reset knob also has a bearing. it measures 6x17x6 and helps carry the load when the drag lever is pushed forward. this design is similar to, actually it is exactly the same as, the design of the accurate boss series of reels.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4545.JPG

    the spool shaft slides out easily. here are the two pressure plates. this design is also exactly the same as the accurate boss series of reels.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4546.JPG

    the drag washers in this reel appear to be teflon. this would explain the big jump in drag pressure when pushing the lever from "fight" to "max."

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4547.JPG

    on the left side of the spool is a small click mechanism. this will tell you when line is being pulled out against the drag. this would be an excellent feature for the blind fisherman.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4548.JPG

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN45492.JPG

    removing the stainless steel retaining ring is very simple.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4550.JPG

    removing the teflon drag washer is equally as simple.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4551.JPG

    these are all of the stock carbon fiber drag washers that i have in stock. i was not fortunate enough to find an exact fit, so i will have to hand cut a pair of drag washers to fit.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4552.JPG

    i ended up matching this to a pair of accurate 665 drag washers.

    http://www.fullspeedfishing.com/gallery/data/500/DSCN6197.JPG

    i used a dremmel to cut down the outer diameter and inner diameter to match the teflon washers. if you do this at home, make sure you don't breathe in the dust.

    http://www.fullspeedfishing.com/gallery/data/500/DSCN61981.JPG

    apply cal's drag grease to the spool and both sides of the drag washer.

    http://www.fullspeedfishing.com/gallery/data/500/DSCN6199.JPG

    install the drag washer, the retaining ring and wipe all of the excess grease from the working surface of the drag washer.

    http://www.fullspeedfishing.com/gallery/data/500/DSCN6200.JPG

    the spool bearings are held in by a retaining ring that is easily removed.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4553.JPG

    these bearings measured 6x15x5

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4556.JPG

    to achieve the best possible freespool, the bearings were opened up, cleaned with carb cleaner and compressed air, lubed with corrosion x, and re-installed open.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4554.JPG

    now this was interesting. with absolutely no axial pressure on the bearings, i got 45 seconds of freespool. when i put even the slightest amount of axial pressure on the pressure plates and bearings, the freespool plummeted to 12 seconds. it looks like we need a bearing sleeve to maintain freespool.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4555.JPG

    and here is our bearing sleeve.

    http://alantani.com/gallery/0/1_29_01_09_9_51_15_0.jpeg

    ok, now this is even more bizarre. after reassemblying the bare spool, i'm back down to 15 seconds of freespool. this is after cleaning and lubing the bearings with corrosion x, then letting it sit for several months before finally completing this post.

    http://alantani.com/gallery/0/1_29_01_09_9_51_20_1.jpeg

    before shipping the reel out, i decided to give it one more try and lubed it up with this stuff. i took both bearing out, stacked one on top of the other, then added some of this stuff down through the bearings. the freespool time jumped from 15 seconds to 3 minutes. i'm going to have to take a closer look at this stuff.

    http://alantani.com/gallery/0/1_29_01_09_9_51_23_2.jpeg

    since it's going to fall out anyway, let's remove the preset knob and bearing assembly and set it aside.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4557.JPG

    we have a rusted right main side plate bearing to service that requires removal of the main gear. that means the handle has to come off. remove the set screw and the handle nut cap.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4558.JPG

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4560.JPG

    remove the handle nut.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4561.JPG

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4562.JPG

    remove the handle.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4563.JPG

    the top of the drive shaft is 7x7mm and is exactly the same size as the drive shaft for the shimano tld 20/25 single speed reel.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4565.JPG

    remove, in order, the metal washer, the teflon washer and the felt washer.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4564.JPG

    with a small dental tool, pry out the gasketed retaining ring.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4569.JPG

    the main gear and drive shaft assembly drops right out, revealing the right main side plate bearing and drive shaft bearing.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4570.JPG

    we will set this felt washer aside.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4571.JPG

    remove the right main side plate bearing.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4572.JPG

    it measures 6x19x9. a very odd size.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4573.JPG

    i would imagine that the manufacturer specified that this bearing was to be greased. well, gentlemen, there is "greased" and there is "greased." this bearing was poorly greased on one side.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4575.JPG

    it was not at all greased on the other side. note well that the single most problematic bearing in a lever drag reel is the right main side plate bearing. failing to address this issue ahead of time speaks very poorly of quality control efforts at the manufacturing level.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4574.JPG

    remove the drive shaft bearing. note that this reel has two anti-reverse roller bearings in series. this is exactly the same system used in the accurate boss reels.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4577.JPG

    this bearing measures 10x15x4.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4578.JPG

    it was lightly grease, so it will be fully greased and the shields will be re-installed.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4579.JPG

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4580.JPG

    the last bearing is the one found in the preset knob and it measures 6x17x6.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4581.JPG

    greased on one side, dry on the other. when will people learn ????????????

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4582.JPG

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4583.JPG

    let's pack the bearing with grease and re-install it. also install the felt drive shaft washer.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4585.JPG

    re-install the main gear and drive shaft assembly.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4586.JPG

    re-install the gasketed retaining ring.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4587.JPG

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4588.JPG

    re-install the felt washer.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4589.JPG

    re-install the teflon washer.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4590.JPG

    re-install the metal washer.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4591.JPG

    re-install the handle.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4592.JPG

    re-install the handle nut.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4593.JPG

    re-instal the handle nut cap and retaining screw.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4595.JPG

    open up the bearing in the preset knob, pack it with grease and re-install it.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4598.JPG

    we need to drop the preset knob back into the lever drag cam. you have to line it up properly or it will not work. see these stainless steel pins?

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4601.JPG

    push the lever back to the "free" position and find the deepest groove in the cam. it's here at the end of my ballpoint pen.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4602.JPG

    line up the pins of the preset knob with the deepest notch in the cam and drop it straight in. you'll know if you miss.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4600.JPG

    slide the spool all the way in and wiggle it until the gear teeth mesh.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN46033.JPG

    hold the left side of the spool shaft stationary with an adjustable wrench and tighten down the spool shaft screw until it is snug.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4605.JPG

    give the spool a spin just to make sure everything works up to now.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4606.JPG

    add a very small bead of grease to each screw hole. careful, not too much!

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4607.JPG

    tighten down each of the right side plate screws.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4608.JPG

    carefully tighten down the preset knob cap with an appropriately sized driver. do not damage with soft aluminum with a screwdriver that is too small.

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4609.JPG

    and we're done!

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4610.JPG

    http://www.fullspeedfishing.com/gallery/data/500/medium/DSCN4611.JPG

    i just shipped the reel back to it's owner today, and here is where we are. all of the screw holes are lubed, all of the non-spool bearings are packed with grease, the teflon drag washers were replaced with accurate carbon fiber and cal's grease, and the spool bearings were cleaned out, sleeved and lubed with extreme reel plus. the reel delivers 360 seconds of freespool after i set the drags to 2 pounds at minimum, 5 pounds at strike, 15 pounds at fight and 30 pounds at max. the pair of anti-reverse roller bearings held when i pulled once at this 30# drag setting. let's hope this performance is consisent on the water.

    alan - 1/29/2009

  2. ichibahn

    ichibahn ** Pak Lurah **

    1,077
    14
    Thanks Alan.
    Blue Heaven reel tutorial, that is what everybody waiting for.


  3. deadsea

    deadsea Member

    69
    0
    Amazing! Thanks, Alan.

  4. moonsoft

    moonsoft Member

    68
    0
    Wonderful detail there, now i wont feel so intimidated when taking my first conventional apart for the after trip maintenance.

  5. mcgolfer

    mcgolfer Guest

    what a great job and such detail. alan your "da man" if your ready to try another one shot me a pm as i would love for mine to have the cleaning and upgrades. i love the reel.....thanks rick

  6. alantani

    alantani Senior Member

    453
    4
    i have been half brain dead for the last week. that should be 3 minutes of freespool, or 180 seconds.

  7. hstsw

    hstsw Senior Member

    966
    115
    Thanks Alan for great tutorials details

  8. Ragman

    Ragman Moderator

    863
    3
    THANKS ALAN!!!

    The reel just arrived today (I just got back in town)!

    Like Rick said, I love fishing with this reel, especially it being a single speed. This reel is light, but really strong. The drag was buttery smooth when I was using it, so it's hard to imagine how much better it will operate after your service!

    More than satisfied!

  9. rtran

    rtran Senior Member

    1,579
    3
    Nice job. The freespool job is really impressive. Crazy lube!

  10. jt2hunt

    jt2hunt Senior Member

    793
    7
    will you do the same to mine?

    thanks

  11. Enoch

    Enoch Senior Member

    2,763
    27
    great job alantani!

    allways a pleasure to read your post while at work!

    easy goings...

  12. alantani

    alantani Senior Member

    453
    4
    sure can. you have a pm. alan

  13. alantani

    alantani Senior Member

    453
    4
    anyone know what happened to ragman? i never did get a check from him.........

  14. txseadog

    txseadog Moderator

    675
    5
  15. alantani

    alantani Senior Member

    453
    4
    the reel was already shipped back to ragman. i know it may seem funny, but here's what i do. i fix a reel and then send it back. the owner needs to make sure everthing is ok and then send me a check. perviously, i only had one customer that had ever stiffed me. he was a 16 year old kid from miami. since then, there have only been two other instances. one involved tom titus (ragman) and the other involved hal gunkel, both from this board. i guess three bad debts is not bad for 10 years of business. alan

  16. mattv

    mattv Junior member

    13
    0
    Excellent tutorial Alan and well photographed too.

    I just finished working on this exact same model reel for a friend yesterday. He had sent his reel to a local fishing store to be serviced as they claimed to do a good job. It was returned with a grating almost negligible free spool. They had not re-installed the drag plate spring (gear side) correctly - it wasn't seating because it was back to front (as one end is larger than the other). They supposedly replaced several bearings and treated the inside of the reel with an anti-corrosion agent. Saw no evidence of this especially the latter. When he asked why the reel was not free spooling anymore they claimed the drag plates were bent.

    Sorry to hear about your bad debtors.

  17. Stryper

    Stryper Senior Member

    782
    5
    I have some of that lube and its attendent grease out in the garage, guess I also have to give it a 2nd. look,e'h?

  18. monocom

    monocom Senior Member

    220
    0
    Looks like the same reel is on the way coming to me.

  19. Dave Nowlin

    Dave Nowlin Senior Member

    727
    1
    If you are speaking of the exact same reel. I hope you have better luck than Alan. If you have already sent your money, you may not receive anything. If he was willing to cheat Alan, why would he treat you any better?

  20. monocom

    monocom Senior Member

    220
    0
    I got the reel today. I bought it from loadhell(han).
